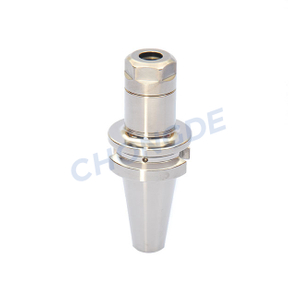

BT GER刀具架系列具有较少的突出长度和比正常的ER工具架更少于突出的接触面积，因此可以提供更高的径向切割力，大大增加夹紧动力。 BT GER Chuck在高速切割过程中有更稳定的特点，改善了使用寿命。 BT GER工具架更适合于更高的速度和更高的精度切割。
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
4耗尽内部柄锥：≤0.002mm;与夹头的同轴度：≤0.005mm;
5动态平衡：G2.5 25000000RPM;
6.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.镀镍涂层，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

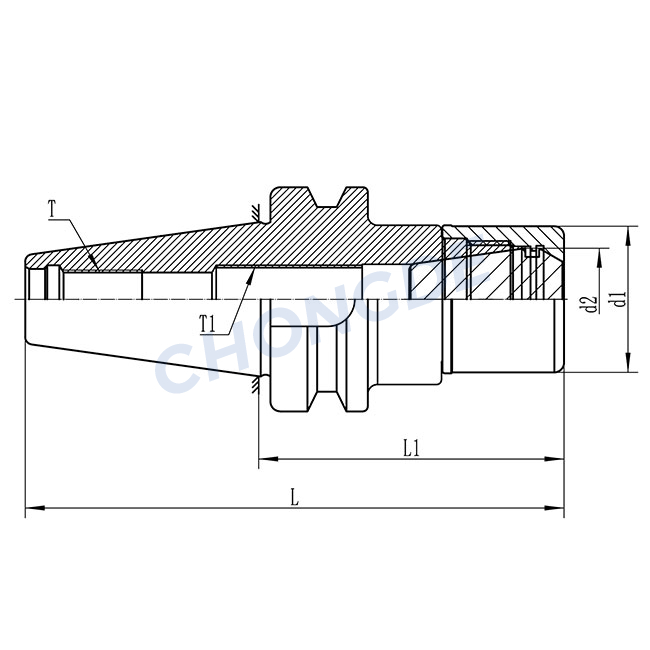

订单号。 | 型号。 | L | L1 | D | D1 | D2 | T1. | 夹子 | 扳手 | kgs. |
CD010106.3011060 | BT30-GER11-60 | 108.4 | 60 | 46 | 19.5 | 1-7 | m6x1p. | er11 | GH19 | 0.45 |
CD010106.3011070 | BT30-GER11-70 | 118.4 | 70 | 0.5 | ||||||
CD010106.3011100 | BT30-GER11-100 | 148.4 | 100 | 0.6 | ||||||
CD010106.3016060 | BT30-GER16-60 | 108.4 | 60 | 27.1 | 1-10 | m11x1p. | ER16 | GH27 | 0.5 | |
CD010106.3016070 | BT30-GER16-70 | 118.4 | 70 | 0.55 | ||||||
CD010106.3016100 | BT30-GER16-100 | 148.4 | 100 | 0.8 | ||||||
CD010106.3020060 | BT30-GER20-60 | 108.4 | 60 | 33 | 1-13 | m14x1p. | ER20 | GH33 | 0.7 | |
CD010106.3020070 | BT30-GER20-70 | 118.4 | 70 | 0.75 | ||||||
CD010106.3020100. | BT30-GER20-100 | 148.4 | 100 | 0.9 | ||||||
CD010106.3025060 | BT30-GER25-60 | 108.4 | 60 | 40 | 1-16 | m18x1.5p. | ER25 | GH40. | 0.65 | |
CD010106.302507070. | BT30-GER25-70 | 118.4 | 70 | 0.7 | ||||||
CD010106.3025100. | BT30-GER25-100 | 148.4 | 100 | 1.45 | ||||||
CD010106.3032060 | BT30-GER32-60 | 108.4 | 60 | 50 | 1-20 | m22x1.5p. | ER32 | GH50. | 0.8 | |
CD010106.3032070 | BT30-GER32-70. | 118.4 | 70 | 0.85 | ||||||
CD010106.3032100 | BT30-GER32-100 | 148.4 | 100 | 1 | ||||||
CD010106.4011060 | BT40-GER11-60 | 125.4 | 60 | 63 | 19.5 | 1-7 | M6×1P. | er11 | GH19 | 1.2 |
CD010106.4011070 | BT40-GER11-70 | 135.4 | 70 | 1.25 | ||||||
CD010106.4011100 | BT40-GER11-100 | 165.4 | 100 | 1.3 | ||||||
CD010106.4016070 | BT40-GER16-70 | 135.4 | 70 | 27.1 | 1-10 | m11x1p. | ER16 | GH27 | 1.36 | |
CD010106.4016100 | BT40-GER16-100 | 165.4 | 100 | 1.54 | ||||||
CD010106.4016125 | BT40-GER16-125 | 190.4 | 125 | 1.6 | ||||||
CD010106.4016150 | BT40-GER16-150 | 215.4 | 150 | 1.86 | ||||||
CD010106.4020070 | BT40-GER20-70 | 135.4 | 70 | 33 | 1-13 | m14x1p. | ER20 | GH33 | 1.7 | |
CD010106.4020100 | BT40-GER20-100 | 165.4 | 100 | 1.8 | ||||||
CD010106.4020150 | BT40-GER20-150 | 215.4 | 150 | 2.1 | ||||||
CD010106.4025070. | BT40-GER25-70 | 135.4 | 70 | 40 | 1-16 | m18x1.5p. | ER25 | GH40. | 1.9 | |
CD010106.4025100 | BT40-GER25-100 | 165.4 | 100 | 2.25 | ||||||
CD010106.4025150 | BT40-GER25-150 | 215.4 | 150 | 2.75 | ||||||
CD010106.4032070 | BT40-GER32-70 | 135.4 | 70 | 50 | 1-20 | m22x1.5p. | ER32 | GH50. | 2.5 | |
CD010106.4032100 | BT40-GER32-100 | 165.4 | 100 | 2.8 | ||||||
CD010106.4032125 | BT40-GER32-125 | 190.4 | 125 | 3 | ||||||
CD010106.4032150 | BT40-GER32-150 | 215.4 | 150 | 3.05 |
