BT ER弹簧夹紧夹头车床工具架，机械主轴和切割工具等配件。高精度BT柄刀具架，平衡G6.3或G2.5供选择，DIN6499夹头卡盘可以直线柄切割机夹紧各种尺寸。订购时，请指定表单：A，AD或（AD + B）。
我们专注于生产BT ER弹簧夹夹，我们可以想到样品加工，以及完善的售后服务和技术支持。期待您的合作！
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
6.超出内部柄锥：≤0.002mm;带夹头的同轴度：≤0.005mm;
7.动态余额可以做：G6.3 12000RPM，G2.5 20000〜30000rpm;
8.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.外观镀镍，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

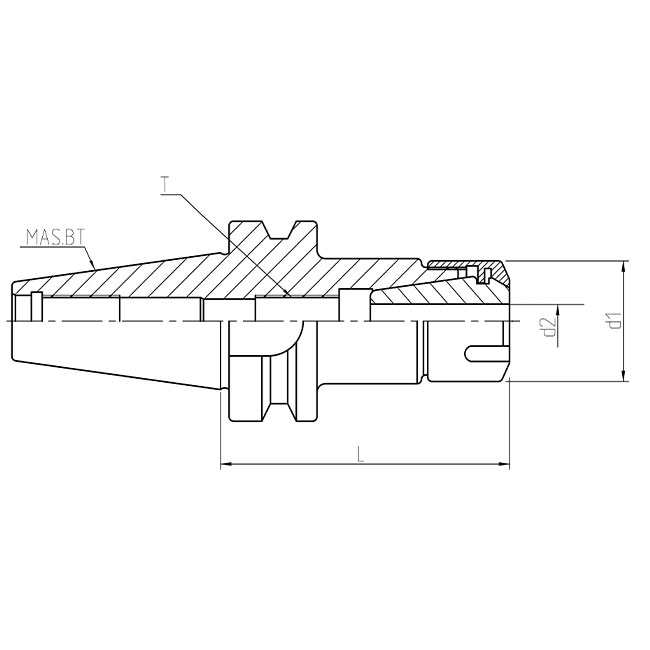

订单号。 | 型号。 | L | D1 | D2 | T | 夹子 | 扳手 | kgs. |
CD010115.3011060 | BT30-ER11-60 | 60 | 19 | 1-7 | m6x1p. | er11 | er11a. | 0.45 |
CD010115.3011070 | BT30-ER11-70. | 70 | 0.5 | |||||
CD010115.3011100 | BT30-ER11-100 | 100 | 0.6 | |||||
CD010115.3011150 | BT30-ER11-150 | 150 | 0.7 | |||||
CD010115.3016060 | BT30-ER16-60 | 60 | 28 | 1-10 | m11x1p. | ER16 | er16a. | 0.5 |
CD010115.3016070 | 70 | 0.55 | ||||||
CD010115.3016100 | BT30-ER16-100 | 100 | 0.8 | |||||
CD010115.3016120 | BT30-ER16-120 | 120 | 0.95 | |||||
CD010115.3016150 | BT30-ER16-150 | 150 | 1 | |||||
CD010115.3020060 | BT30-ER20-60 | 60 | 34 | 1-13 | m14x1p. | ER20 | ER20A | 0.7 |
CD010115.3020070 | BT30-ER20-70 | 70 | 0.75 | |||||
CD010115.3020100 | BT30-ER20-100 | 100 | 0.9 | |||||
CD010115.3025060 | BT30-ER25-60 | 60 | 42 | 1-16 | m18x1.5p. | ER25 | ER25UM | 0.65 |
CD010115.3025070. | BT30-ER25-70 | 70 | 0.7 | |||||
CD010115.3025100 | BT30-ER25-100 | 100 | 1.45 | |||||
CD010115.3025150 | BT30-ER25-150 | 150 | 1.6 | |||||
CD010115.3032060 | BT30-ER32-60 | 60 | 50 | 1-20 | m22x1.5p. | ER32 | er32um | 0.8 |
CD010115.3032070 | BT30-ER32-70 | 70 | 0.85 | |||||
CD010115.3032100 | BT30-ER32-100 | 100 | 1.5 | |||||
CD010115.3032150 | BT30-ER32-150 | 150 | 1.7 | |||||
CD010115.3040080 | BT30-ER40-80 | 80 | 63 | 3-26 | m28x1.5p. | ER40 | er40um | 1.1 |
CD010115.3040100 | BT30-ER40-100 | 100 | 1.6 | |||||
CD010115.3040150 | BT30-ER40-150 | 150 | 1.8 | |||||
CD010115.4011060 | BT40-ER11-60 | 60 | 19 | 1-7 | M6×1P. | er11 | er11a. | 1.2 |
CD010115.4011070 | BT40-ER11-70 | 70 | 1.25 | |||||
CD010115.4011100 | BT40-ER11-100 | 100 | 1.3 | |||||
CD010115.4016070 | BT40-ER16-70 | 70 | 28 | 1-10 | m11x1p. | ER16 | er16a. | 1.36 |
CD010115.4016100 | BT40-ER16-100 | 100 | 1.54 | |||||
CD010115.4016125 | BT40-ER16-125 | 125 | 1.6 | |||||
CD010115.4016150 | BT40-ER16-150 | 150 | 1.86 | |||||
CD010115.4020070 | BT40-ER20-70 | 70 | 34 | 1-13 | m14x1p. | ER20 | ER20A | 1.7 |
CD010115.4020100 | BT40-ER20-100 | 100 | 1.8 | |||||
CD010115.4020150 | BT40-ER20-150 | 150 | 2.1 | |||||
CD010115.402507070 | BT40-ER25-70. | 70 | 42 | 1-16 | m18x1.5p. | ER25 | ER25UM | 1.9 |
CD010115.4025100 | BT40-ER25-100 | 100 | 2.25 | |||||
CD010115.4025150 | BT40-ER25-150 | 150 | 2.75 | |||||
CD010115.4032070 | BT40-ER32-70 | 70 | 50 | 1-20 | m22x1.5p. | ER32 | er32um | 2.5 |
CD010115.4032100 | BT40-ER32-100 | 100 | 2.8 | |||||
CD010115.4032125 | BT40-ER32-125 | 125 | 3 | |||||
CD010115.4032150 | BT40-ER32-150 | 150 | 3.05 | |||||
CD010115.4032200. | BT40-ER32-200 | 200 | 3.1 | |||||
CD010115.4040070 | BT40-ER40-70 | 70 | 63 | 3-26 | m28x1.5p. | ER40 | er40um | 2.3 |
CD010115.4040080 | BT40-ER40-80 | 80 | 2.5 | |||||
CD010115.4040100 | BT40-ER40-100 | 100 | 3.1 | |||||
CD010115.4040120 | BT40-ER40-120 | 120 | 3.7 | |||||
CD010115.4040150 | BT40-ER40-150 | 150 | 4.1 | |||||
CD010115.4050085 | BT40-ER50-85 | 85 | 78 | 6-34 | m28x1.5p. | ER50 | er50um | 3.1 |
CD010115.4050100 | BT40-ER50-100 | 100 | 3.2 |
