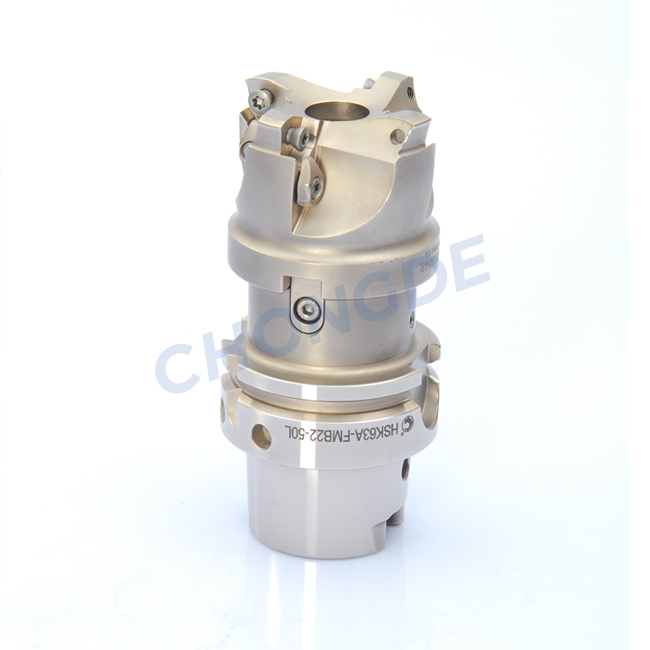

Chongde HSK63A / HSK100A FMB面铣床架
HSK63A / HSK100A FMB面部铣削架CNC铣刀架，用于夹具的夹具与径向驱动槽，如面部铣刀，垂直盘式刀具，设定型端铣刀，高速高精度加工。机械主轴和切削刀具等配件。
特征：
TIR：≤0.0002\“;
材质：20crmnti;硬度：56-60 HRC;
用于安装面部铣刀;
用完内部柄锥：≤0.002mm;
锥度接地到AT3耐受性或更好;
冷却剂管需要单独购买;
镍涂层或波兰镍涂层工具架表面：防锈，防腐，耐用性更好。
我们的优势
刚性很大;
零件加工和表面处理尺寸的高精度稳定性
使用生命改善切削工具
在重切割过程中，振动引起的锥形柄的磨损减小
ATC重复高精度的操作
含镍涂层的出现，产品是防锈，防腐和耐用性更好。

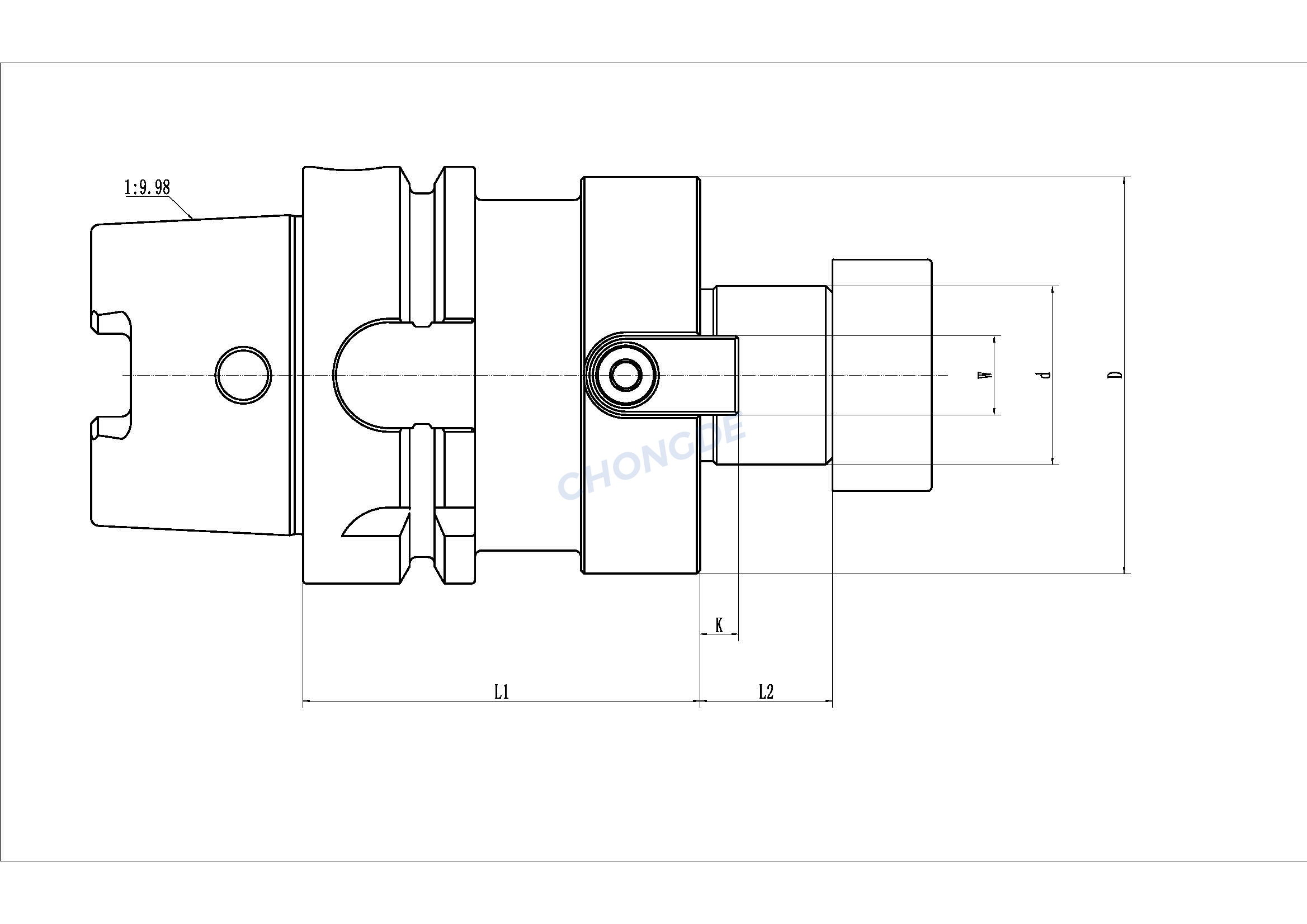

订单号。 | 型号。 | 柄 | d | D | L1 | L2 |
CD110905.6316050 | HSK63A-FMB16-50 | HSK63A | 16 | 38 | 50 | 17 |
CD110905.6316100 | HSK63A-FMB16-100 | HSK63A | 16 | 38 | 100 | 17 |
CD110905.6316160 | HSK63A-FMB16-160 | HSK63A | 16 | 38 | 160 | 17 |
CD110905.6322050 | HSK63A-FMB22-50 | HSK63A | 22 | 48 | 50 | 19 |
CD110905.6322100 | HSK63A-FMB22-100 | HSK63A | 22 | 48 | 100 | 19 |
CD110905.6322160 | HSK63A-FMB22-160 | HSK63A | 22 | 48 | 160 | 19 |
CD110905.6327060 | HSK63A-FMB27-60 | HSK63A | 27 | 58 | 60 | 21 |
CD110905.6327100 | HSK63A-FMB27-100 | HSK63A | 27 | 58 | 100 | 21 |
CD110905.6327160 | HSK63A-FMB27-160 | HSK63A | 27 | 58 | 160 | 21 |
CD110905.6332060 | HSK63A-FMB32-60 | HSK63A | 32 | 78 | 60 | 24 |
CD110905.6332100 | HSK63A-FMB32-100 | HSK63A | 32 | 78 | 100 | 24 |
CD110905.6332160 | HSK63A-FMB32-160 | HSK63A | 32 | 78 | 160 | 24 |
CD110905.6340060 | HSK63A-FMB40-60 | HSK63A | 40 | 88 | 60 | 27 |
CD110905.6340100 | HSK63A-FMB40-100 | HSK63A | 40 | 88 | 100 | 27 |
CD110905.6340160 | HSK63A-FMB40-160 | HSK63A | 40 | 88 | 160 | 27 |
CD110905.1016050 | HSK100A-FMB16-50 | HSK100A | 16 | 48 | 50 | 19 |
CD110905.1016100 | HSK100A-FMB16-100 | HSK100A | 16 | 48 | 100 | 19 |
CD110905.1016160 | HSK100A-FMB16-160 | HSK100A | 16 | 48 | 160 | 19 |
CD110905.1022050 | HSK100A-FMB22-50 | HSK100A | 22 | 48 | 50 | 19 |
CD110905.1022100 | HSK100A-FMB22-100 | HSK100A | 22 | 48 | 100 | 19 |
CD110905.1022160 | HSK100A-FMB22-160 | HSK100A | 22 | 48 | 160 | 19 |
CD110905.1027050 | HSK100A-FMB27-50 | HSK100A | 27 | 58 | 50 | 21 |
CD110905.1027100 | HSK100A-FMB27-100 | HSK100A | 27 | 58 | 100 | 21 |
CD110905.1027160 | HSK100A-FMB27-160 | HSK100A | 27 | 58 | 160 | 21 |
CD110905.1032050 | HSK100A-FMB32-50 | HSK100A | 32 | 78 | 50 | 24 |
CD110905.1032100 | HSK100A-FMB32-100 | HSK100A | 32 | 78 | 100 | 24 |
CD110905.1032160 | HSK100A-FMB32-160 | HSK100A | 32 | 78 | 160 | 24 |
CD110905.1040060 | HSK100A-FMB40-60 | HSK100A | 40 | 88 | 60 | 27 |
CD110905.1040100 | HSK100A-FMB40-100 | HSK100A | 40 | 88 | 100 | 27 |
CD110905.1040160 | HSK100A-FMB40-160 | HSK100A | 40 | 88 | 160 | 27 |
