SK（DIN69871 / JT / DAT / DV）ER高速夹紧夹头
SK ER弹簧夹夹车床刀柄，机械主轴和切割工具等配件。高精度SK柄工具架，平衡G6.3或G2.5供选择，配有DIN6499夹头卡盘可以是直柄切割机夹紧各种尺寸。订购时，请指定表单：A，AD或（AD + B）。
我们专注于生产SK ER弹簧夹夹，我们可以想到样品处理，完善的售后服务和技术支持。期待您的合作！
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
6.超出内部柄锥：≤0.002mm;带夹头的同轴度：≤0.005mm;
7.动态余额可以做：G6.3 12000RPM，G2.5 20000〜30000rpm;
8.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.外观镀镍，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

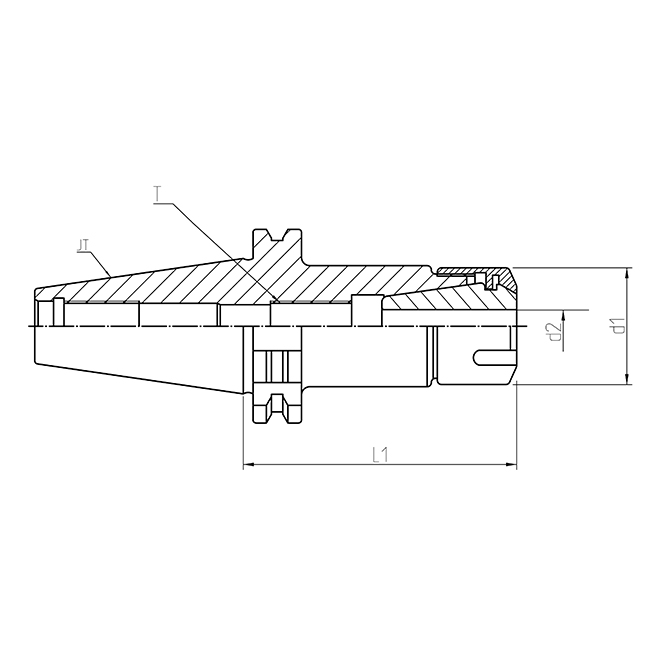

订单号。 | 型号。 | L1 | D1 | D2 | T | coll | 扳手 | kgs. |
CD010121.3011100 | SK30-ER11-100 | 100 | 19 | 1-7 | M6×1P. | er11 | er11a. | 0.6 |
CD010121.3016100 | SK30-ER16-100 | 100 | 28 | 1-10 | m11x1p. | ER16 | er16a. | 0.7 |
CD010121.3020100 | SK30-ER20-100 | 100 | 34 | 1-13 | m14x1p. | ER20 | ER20A | 0.75 |
CD010121.3025100 | SK30-ER25-100 | 100 | 42 | 1-16 | m18x1.5p. | ER25 | ER25UM | 0.8 |
CD010121.3032100 | SK30-ER32-100 | 100 | 50 | 1-20 | m22x1.5p. | ER32 | er32um | 0.9 |
CD010121.4011100 | SK40-ER11-100 | 100 | 19 | 1-7 | M6×1P. | er11 | er11a. | 1.05 |
CD010121.4011125 | SK40-ER11-125. | 125 | er11 | er11a. | 1.15 | |||
CD010121.4016070 | SK40-ER16-70. | 70 | 28 | 1-10 | m11x1p. | ER16 | er16a. | 1.3 |
CD010121.4016100 | SK40-ER16-100 | 100 | ER16 | er16a. | 1.4 | |||
CD010121.4016125 | SK40-ER16-125 | 125 | ER16 | er16a. | 1.6 | |||
CD010121.4016150 | SK40-ER16-150 | 150 | ER16 | er16a. | 1.65 | |||
CD010121.4020070 | SK40-ER20-70 | 70 | 34 | 1-13 | m14x1p. | ER20 | ER20A | 1.4 |
CD010121.4020100 | SK40-ER20-100 | 100 | ER20 | ER20A | 1.5 | |||
CD010121.4020125 | SK40-ER20-125 | 125 | ER20 | ER20A | 1.95 | |||
CD010121.4020150 | SK40-ER20-150 | 150 | ER20 | ER20A | 2.2 | |||
CD010121.4025070 | SK40-ER25-70. | 70 | 42 | 1-16 | m18x1.5p. | ER25 | ER25UM | 1.6 |
CD010121.4025100 | SK40-ER25-100 | 100 | ER25 | ER25UM | 1.85 | |||
CD010121.4025150. | SK40-ER25-150 | 150 | ER25 | ER25UM | 2.25 | |||
CD010121.4032070 | SK40-ER32-70. | 70 | 50 | 1-20 | m22x1.5p. | ER32 | er32um | 1.6 |
CD010121.4032100 | SK40-ER32-100 | 100 | ER32 | er32um | 2 | |||
CD010121.4032125 | SK40-ER32-125 | 125 | ER32 | er32um | 2.15 | |||
CD010121.4032150 | SK40-ER32-150 | 150 | ER32 | er32um | 2.65 | |||
CD010121.4040070 | SK40-ER40-70 | 70 | 63 | 3-26 | m28x1.5p. | ER40 | er40um | 1.5 |
CD010121.4040100 | SK40-ER40-100 | 100 | ER40 | er40um | 2 | |||
CD010121.4040125 | SK40-ER40-125 | 125 | ER40 | er40um | 3.3 | |||
CD010121.4050100 | SK40-ER50-100 | 100 | 78 | 6-34 | ER50 | er50um | 1.7 | |
CD010121.5016100 | SK50-ER16-100 | 100 | 28 | 1-10 | m11x1p. | ER16 | er16a. | 3.2 |
CD010121.5016125 | SK50-ER16-125 | 125 | ER16 | er16a. | 4.3 | |||
CD010121.5016150 | SK50-ER16-150 | 150 | ER16 | er16a. | 4.5 | |||
CD010121.5020100. | SK50-ER20-100 | 100 | 34 | 1-13 | m14x1p. | ER20 | ER20A | 3.4 |
CD010121.5020125 | SK50-ER20-125. | 125 | ER20 | ER20A | 3.6 | |||
CD010121.5020150 | SK50-ER20-150 | 150 | ER20 | ER20A | 3.8 | |||
CD010121.5025070. | SK50-ER25-70. | 70 | 42 | 1-16 | m18x1.5p. | ER25 | ER25UM | 3.4 |
CD010121.5025100 | SK50-ER25-100 | 100 | ER25 | ER25UM | 4.15 | |||
CD010121.5025150. | SK50-ER25-150 | 150 | ER25 | ER25UM | 4.5 | |||
CD010121.5032070 | SK50-ER32-70. | 70 | 50 | 1-20 | m22x1.5p. | ER32 | er32um | 3.6 |
CD010121.5032100 | SK50-ER32-100 | 100 | ER32 | er32um | 4.6 | |||
CD010121.5032150 | SK50-ER32-150 | 150 | ER32 | er32um | 4.75 | |||
CD010121.5040080 | SK50-ER40-80 | 80 | 63 | 3-26 | m28x1.5p. | ER40 | er40um | 3.65 |
CD010121.5040120 | SK50-ER40-120 | 120 | ER40 | er40um | 4.8 | |||
CD010121.5040150 | SK50-ER40-150 | 150 | ER40 | er40um | 5.2 | |||
CD010121.5050080 | SK50-ER50-80 | 80 | 78 | 6-34 | m28x1.5p. | ER50 | er50um | 4.85 |
CD010121.5050120 | SK50-ER50-120 | 120 | ER50 | er50um | 5.45 | |||
CD010121.5050150 | SK50-ER50-150 | 150 | ER50 | er50um | 5.55 |
