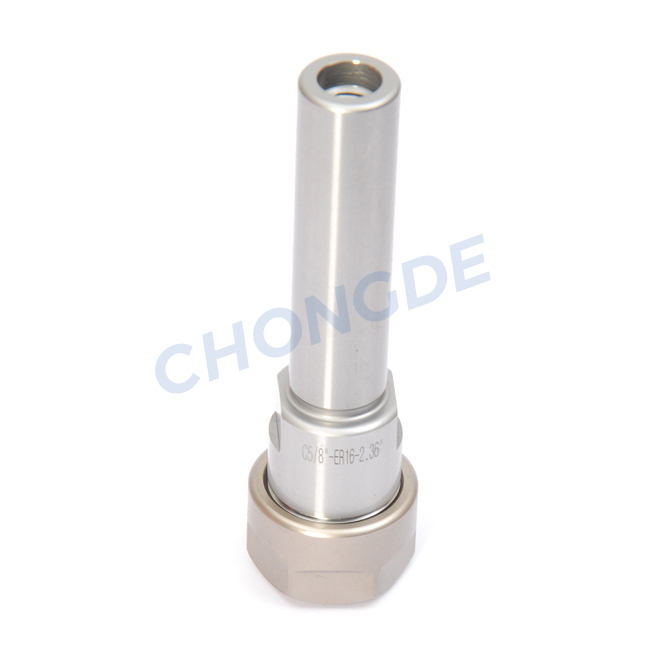

呃直柄夹头夹头
高质量的C / ER直柄夹夹夹在铣床中，平衡G6.3 12000rpm / 18000rpm.it可减少延长切割工具，降低成本，提高效率。直柄夹头夹头的小腿：10mm，12mm，16mm，20mm，25mm，32mm，40mm。合适的夹头：ER11 / ER16 / ER20 / ER25 / ER32 / ER40。突出长度与20mm至200mm的差异差异。合适的螺母和扳手也可应要求。
高精度MTB柄工具架是镍涂层，防锈，防腐和耐用性更好。使用DIN6499夹头卡盘可以是直柄切割机夹紧各种尺寸。
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.呃直柄更长，适合深孔加工;
4.磨削后的外径和其他部件，消除不平衡余量，有利于切割的稳定性;
5.可以减少延长切割工具的选择，降低成本，提高效率;
6.耗尽内部柄锥：≤0.003mm;与夹头的同轴度：≤0.005mm;
7.动态平衡：G6.3 12000rpm; g6.3 18000rpm。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.外观镀镍，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。
订单号。 | 型号。 | L | D | C | T1. | T2. | coll | 扳手 |
CD010132.0811050 | C8-ER8A-50 | 71.5 | 13.5 | 8 | m5x1p. | m4x0.7p. | ER8 | er8a. |
CD010132.0811100 | C8-ER11A-100 | 128.3 | 19 | 8 | m6x1p. | m4x0.7p. | er11 | er11a. |
CD010132.1008100 | C10-ER8A-100 | 121.5 | 13.5 | 10 | m5x1p. | m5x1p. | ER8 | er8a. |
CD010132.1008150 | C10-ER8A-150 | 171.5 | 13.5 | 10 | m5x1p. | m5x1p. | ER8 | er8a. |
CD010132.1008180 | C10-ER8A-180 | 201.5 | 13.5 | 10 | m5x1p. | m5x1p. | ER8 | er8a. |
CD010132.1208055 | C12-ER8A-55 | 76.5 | 13.5 | 12 | m5x1p. | m5x1p. | ER8 | er8a. |
CD010132.1208100 | C12-ER8A-100 | 121.5 | 13.5 | 12 | m5x1p. | m5x1p. | ER8 | er8a. |
CD010132.1208150 | C12-ER8A-150 | 171.5 | 13.5 | 12 | m5x1p. | m6x1p. | ER8 | er8a. |
CD010132.1611050 | C16-ER11A-50 | 74.3 | 19 | 16 | m6x1p. | m10x1.5p. | er11 | er11a. |
CD010132.1611100 | C16-ER11A-100 | 124.3 | 19 | 16 | m6x1p. | m10x1.5p. | er11 | er11a. |
CD010132.1611120 | C16-ER11A-120 | 144.3 | 19 | 16 | m6x1p. | m10x1.5p. | er11 | er11a. |
CD010132.1611150 | C16-ER11A-150 | 174.3 | 28 | 16 | m6x1p. | m10x1.5p. | er11 | er11a. |
CD010132.1616050 | C16-ER16A-50 | 90.3 | 28 | 16 | m6x1p. | m10x1.5p. | ER16 | er16a. |
CD010132.1616100 | C16-ER16A-100 | 140.3 | 28 | 16 | m6x1p. | m10x1.5p. | ER16 | er16a. |
CD010132.1616120 | C16-ER16A-120 | 160.3 | 28 | 16 | m6x1p. | m10x1.5p. | ER16 | er16a. |
CD010132.1616150 | C16-ER16A-150 | 190.3 | 28 | 16 | m6x1p. | m10x1.5p. | ER16 | er16a. |
CD010132.1616200 | C16-ER16A-200 | 210.3 | 28 | 16 | m6x1p. | m10x1.5p. | ER16 | er16a. |
CD010132.1620100 | C16-ER20A-100 | 150.2 | 34 | 16 | m10x1.5p. | m10x1.5p. | ER20 | ER20A |
CD010132.1620150 | C16-ER20A-150 | 200.2 | 34 | 16 | m10x1.5p. | m10x1.5p. | ER20 | ER20A |
CD010132.1625100 | C16-ER25-100 | 156.7 | 42 | 16 | m10x1.5p. | m10x1.5p. | ER25 | ER25UM |
CD010132.2016050 | C20-ER16A-50 | 90.3 | 28 | 20 | m10x1.5p. | m10x1.5p. | ER16 | er16a. |
CD010132.2016100 | C20-ER16A-100 | 140.3 | 28 | 20 | m10x1.5p. | m10x1.5p. | ER16 | er16a. |
CD010132.2016150 | C20-ER16A-150 | 220.3 | 28 | 20 | m10x1.5p. | m10x1.5p. | ER16 | er16a. |
CD010132.2016200 | C20-ER16A-200 | 270.3 | 28 | 20 | m10x1.5p. | m10x1.5p. | ER16 | er16a. |
