呃直柄夹头夹头
高质量的C / ER直柄夹夹夹在铣床中，平衡G6.3 12000rpm / 18000rpm.it可减少延长切割工具，降低成本，提高效率。直柄夹头夹头的小腿：10mm，12mm，16mm，20mm，25mm，32mm，40mm。合适的夹头：ER11 / ER16 / ER20 / ER25 / ER32 / ER40。突出长度与20mm至200mm的差异差异。合适的螺母和扳手也可应要求。
高精度MTB柄工具架是镍涂层，防锈，防腐和耐用性更好。使用DIN6499夹头卡盘可以是直柄切割机夹紧各种尺寸。
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.呃直柄更长，适合深孔加工;
4.磨削后的外径和其他部件，消除不平衡余量，有利于切割的稳定性;
5.可以减少延长切割工具的选择，降低成本，提高效率;
6.耗尽内部柄锥：≤0.003mm;与夹头的同轴度：≤0.005mm;
7.动态平衡：G6.3 12000rpm; g6.3 18000rpm。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.外观镀镍，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

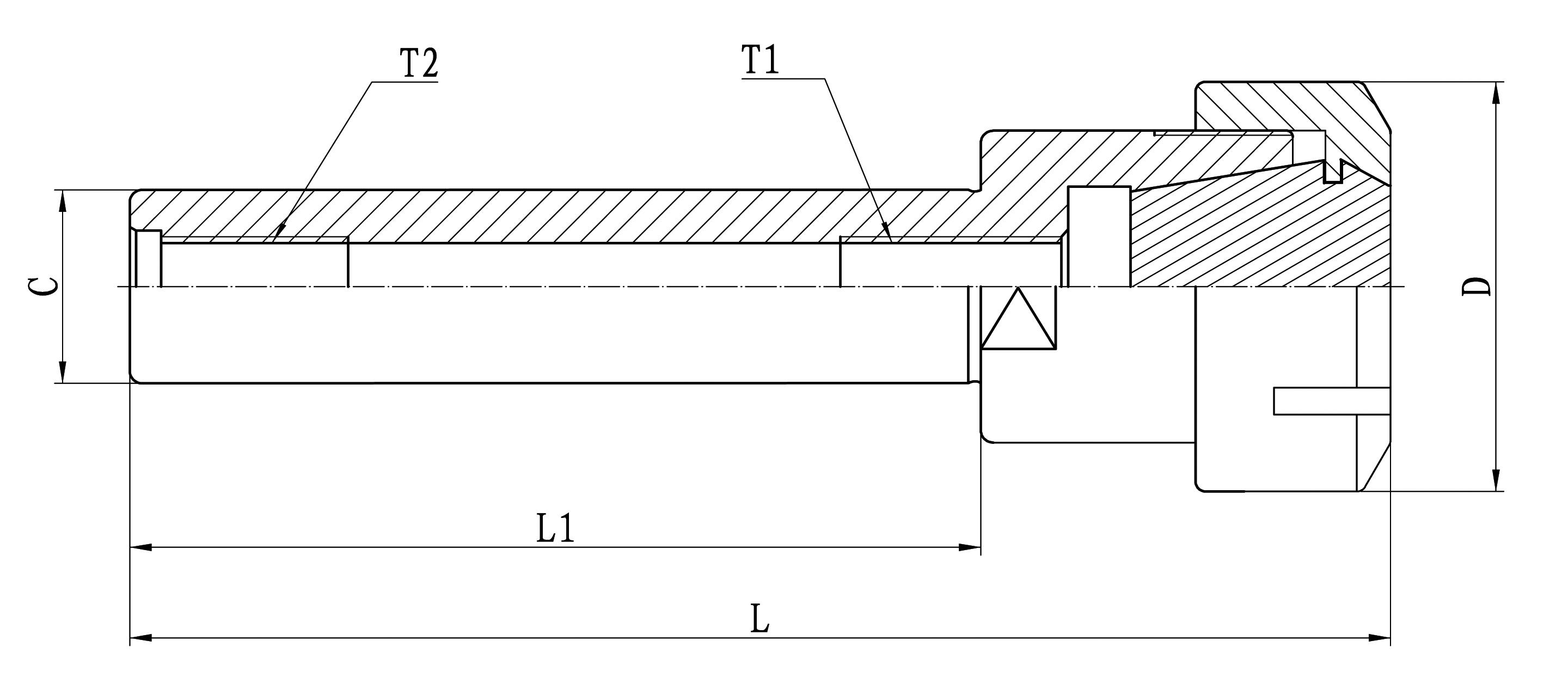

| 订单号。 | 型号。 | L | L1 | D | C | T1. | T2. | coll | 扳手 |
| CD010133.2020050 | C20-ER20A-50 | 101.2 | 50 | 34 | 20 | m12x1.75p. | m10x1.5p. | ER20 | ER20A |
| CD010133.2020100 | C20-ER20A-100 | 151.2 | 100 | 34 | 20 | m12x1.75p. | m10x1.5p. | ER20 | ER20A |
| CD010133.2020120 | C20-ER20A-120 | 171.2 | 120 | 34 | 20 | m12x1.75p. | m10x1.5p. | ER20 | ER20A |
| CD010133.2020150 | C20-ER20A-150 | 221.2 | 150 | 34 | 20 | m12x1.75p. | m10x1.5p. | ER20 | ER20A |
| CD010133.2020180 | C20-ER20A-180 | 231.2 | 180 | 34 | 20 | m12x1.75p. | m10x1.5p. | ER20 | ER20A |
| CD010133.2020200. | C20-ER20A-200 | 251.2 | 200 | 34 | 20 | m12x1.75p. | m10x1.5p. | ER20 | ER20A |
| CD010133.2025050 | C20-ER25-50 | 106.7 | 50 | 42 | 20 | m12x1.75p. | m10x1.5p. | ER25 | ER25UM |
| CD010133.2025100 | C20-ER25-100 | 156.7 | 100 | 42 | 20 | m12x1.75p. | m10x1.5p. | ER25 | ER25UM |
| CD010133.2025150 | C20-ER25-150 | 206.7 | 150 | 42 | 20 | m12x1.75p. | m10x1.5p. | ER25 | ER25UM |
| CD010133.2032050 | C20-ER32-50 | 107.2 | 50 | 50 | 20 | m12x1.75p. | m10x1.5p. | ER32 | er32um |
| CD010133.2032100 | C20-ER32-100 | 157.2 | 100 | 50 | 20 | m12x1.75p. | m10x1.5p. | ER32 | er32um |
| CD010133.2520150 | C25-ER20A-150 | 201.2 | 150 | 150 | 34 | m12x1.75p. | m12x1.75p. | ER20 | ER20A |
| CD010133.2525050. | C25-ER25-50. | 106.7 | 50 | 42 | 25 | m12x1.75p. | m12x1.75p. | ER25 | ER25UM |
| CD010133.2525100 | C25-ER25-100 | 156.7 | 100 | 42 | 25 | m12x1.75p. | m12x1.75p. | ER25 | ER25UM |
| CD010133.2525150. | C25-ER25-150 | 206.7 | 150 | 42 | 25 | m12x1.75p. | m12x1.75p. | ER25 | ER25UM |
| CD010133.2525220 | C25-ER25-220 | 276.7 | 220 | 42 | 25 | m12x1.75p. | m12x1.75p. | ER25 | ER25UM |
| CD010133.2532050 | C25-ER32-50 | 108.7 | 50 | 50 | 25 | m16x2.0p. | m12x1.75p. | ER32 | er32um |
| CD010133.2532100 | C25-ER32-100 | 158.7 | 100 | 50 | 25 | m16x2.0p. | m12x1.75p. | ER32 | er32um |
| CD010133.2540050 | C25-ER40-50 | 119.7 | 50 | 63 | 25 | m16x2.0p. | m12x1.75p. | ER40 | er40um |
| CD010133.2540050 | C25-ER40-100 | 169.7 | 100 | 63 | 25 | m16x2.0p. | m12x1.75p. | ER40 | er40um |
| CD010133.3232060 | C32-ER32-60 | 118.7 | 60 | 50 | 32 | m16x2.0p. | m16x2.0p. | ER32 | er32um |
| CD010133.3232075 | C32-ER32-75 | 233.7 | 75 | 50 | 32 | m16x2.0p. | m16x2.0p. | ER32 | er32um |
| CD010133.3240050 | C32-ER40-50 | 119.7 | 50 | 63 | 32 | m16x2.0p. | m16x2.0p. | ER40 | er40um |
| CD010133.4032100 | C40-ER32-100 | 158.7 | 100 | 50 | 40 | m16x2.0p. | m16x2.0p. | ER32 | er32um |
| CD010133.4040070 | C40-ER40-70 | 139.7 | 70 | 63 | 40 | m16x2.0p. | m16x2.0p. | ER40 | er40um |
| CD010133.4040100 | C40-ER40-100 | 169.7 | 100 | 63 | 40 | m16x2.0p. | m16x2.0p. | ER40 | er40um |
