猫（ANSI B5.50、ct）er inclet chuck
Cat ER弹簧夹夹头车床工具架，机械主轴和切削刀具等配件。高精度猫柄工具架，平衡G6.3或G2.5供选择，DIN6499夹头卡盘可以是直柄切割机夹紧各种尺寸。订购时，请指定表单：A，AD或（AD + B）。
我们专注于生产SK ER弹簧夹夹，我们可以想到样品处理，完善的售后服务和技术支持。期待您的合作！
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
6.超出内部柄锥：≤0.002mm;带夹头的同轴度：≤0.005mm;
7.动态余额可以做：G6.3 12000RPM，G2.5 20000〜30000rpm;
8.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.外观镀镍，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。
6。当客户订购CAT锥度柄时，可以选择指标或其他形式的线程。

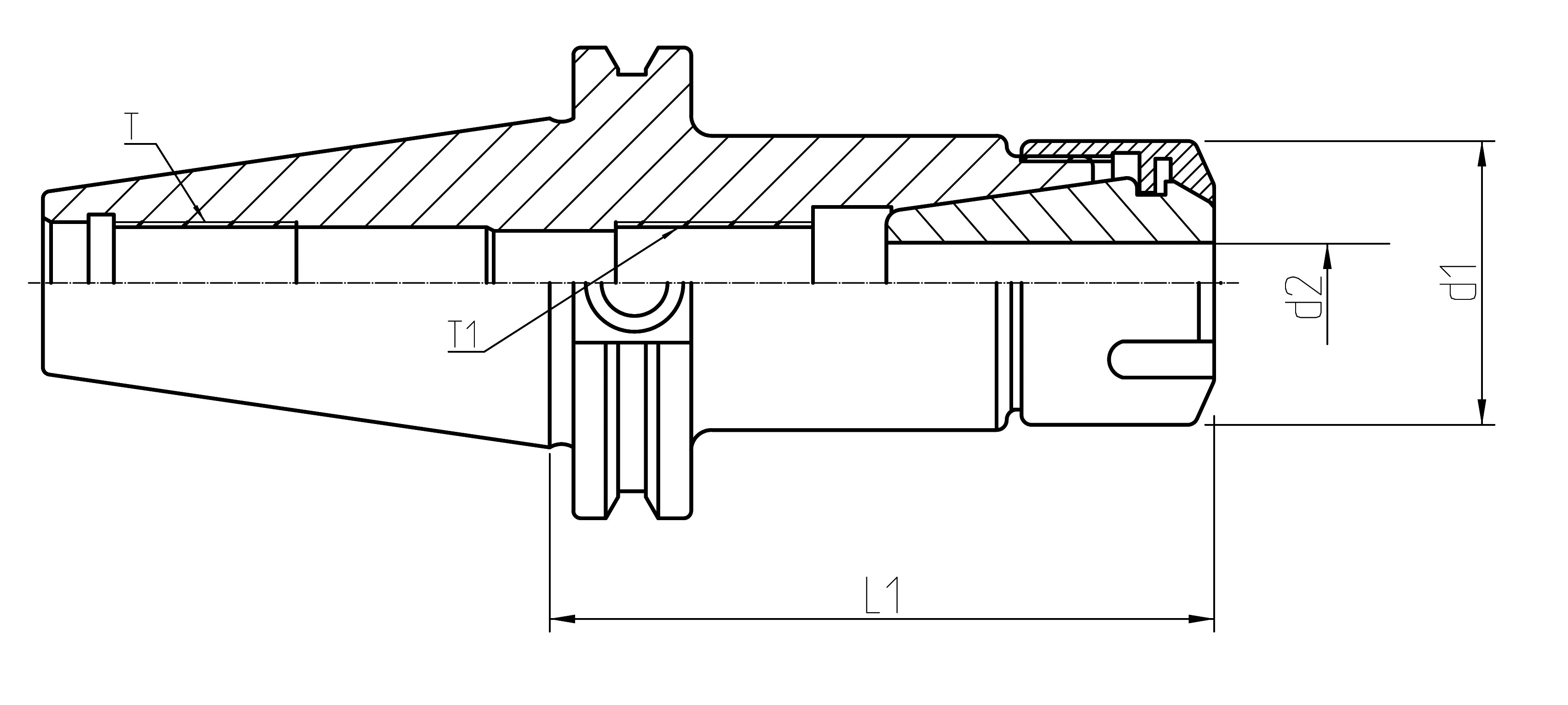

订单号。 | 型号。 | L1 | D1 | D2 | T | T1. | coll | 扳手 | kgs. |
CD010123.4016070 | cat40-er16-2.76 \“ | 2.76“ | 1.067“ | 1/32“ - 3/8” | 5/8 \“ - 11unc | m11x1p. | ER16 | er16a. | 1.05 |
CD010123.4016101 | cat40-er16-4 \“ | 4 \“ | ER16 | er16a. | 1.35 | ||||
CD010123.4016152 | cat40-er16-6 \“ | 6 \“ | ER16 | er16a. | 1.65 | ||||
CD010123.4016203 | cat40-er16-8“ | 8 \“ | ER16 | er16a. | 1.85 | ||||
CD010123.4020070 | cat40-er20-2.76 \“ | 2.76“ | 1.299“ | 1/32“ - 1/2” | m14x1p. | ER20 | ER20A | 1.25 | |
CD010123.4020101 | cat40-er20-4“ | 4 \“ | ER20 | ER20A | 1.65 | ||||
CD010123.402507070. | cat40-er25-2.76 \“ | 2.76“ | 1.575“ | 1/16“ - 5/8” | m18x1p. | ER25 | ER25UM | 1.35 | |
CD010123.4025101 | cat40-er25-4 \“ | 4 \“ | ER25 | ER25UM | 1.7 | ||||
CD010123.4025152 | cat40-er25-6 \“ | 6 \“ | ER25 | ER25UM | 2.25 | ||||
CD010123.4025203 | cat40-er25-8“ | 8 \“ | ER25 | ER25UM | 2.55 | ||||
CD010123.4032070 | cat40-er32-2.76 \“ | 2.76“ | 1.969“ | 1/16“ - 3/4” | m22x1.5p. | ER32 | er32um | 1.25 | |
CD010123.4032101 | cat40-er32-4“ | 4 \“ | ER32 | er32um | 1.75 | ||||
CD010123.4032152 | cat40-er32-6“ | 6 \“ | ER32 | er32um | 2.15 | ||||
CD010123.4032203 | cat40-er32-8“ | 8 \“ | ER32 | er32um | 2.65 | ||||
CD010123.4040080 | cat40-er40-3.15 \“ | 3.15 \“ | 2.48“ | 1/8“ - 1” | m28x1.5p. | ER40 | er40um | 1.8 | |
CD010123.4040101 | cat40-er40-4“ | 4 \“ | ER40 | er40um | 2.05 | ||||
CD010123.4040152 | cat40-er40-6“ | 6 \“ | ER40 | er40um | 3.3 | ||||
CD010123.405011 | cat40-er50-4“ | 4 \“ | 3.27“ | 1/4“ - 1-5 / 16” | M28×1.5P. | ER50 | er50um | 2.65 | |
CD010123.5016101 | cat50-er16-4 \“ | 4 \“ | 1.067“ | 1/32“ - 3/8” | 1 \“ - 8unc | m11x1p. | ER16 | er16a. | 4.1 |
CD010123.5016152 | cat50-er16-6 \“ | 6 \“ | ER16 | er16a. | 4.28 | ||||
CD010123.5016203 | cat50-er16-8“ | 8 \“ | ER16 | er16a. | 4.4 | ||||
CD010123.5020101. | cat50-er20-4 \“ | 4 \“ | 1.299“ | 1/32“ - 1/2” | m14x1p. | ER20 | ER20A | 4.2 | |
CD010123.5020152 | cat50-er20-6 \“ | 6 \“ | ER20 | ER20A | 4.45 | ||||
CD010123.5020203. | cat50-er20-8“ | 8 \“ | ER20 | ER20A | 4.6 | ||||
CD010123.5025101 | cat50-er25-4 \“ | 4 \“ | 1.575“ | 1/16“ - 5/8” | m18x1p. | ER25 | ER25UM | 4.15 | |
CD010123.5025152 | cat50-er25-6 \“ | 6 \“ | ER25 | ER25UM | 4.5 | ||||
CD010123.5025203. | cat50-er25-8“ | 8 \“ | ER25 | ER25UM | 4.7 | ||||
CD010123.5032101 | cat50-er32-4 \“ | 4 \“ | 1.969“ | 1/16“ - 3/4” | m22x1.5p. | ER32 | er32um | 4.35 | |
CD010123.5032152 | cat50-er32-6 \“ | 6 \“ | ER32 | er32um | 4.6 | ||||
CD010123.5032203 | cat50-er32-8“ | 8 \“ | ER32 | er32um | 4.9 | ||||
CD010123.5040101 | Cat50-ER40-4“ | 4 \“ | 2.48“ | 1/8“ - 1” | m28x1.5p. | ER40 | er40um | 4.25 | |
CD010123.5040152 | cat50-er40-6“ | 6 \“ | ER40 | er40um | 4.8 | ||||
CD010123.5040203. | cat50-er40-8“ | 8 \“ | ER40 | er40um | 5.10 | ||||
CD010123.505011 | cat50-er50-4 \“ | 4 \“ | 3.07“ | 1/4“ - | m28x1.5p. | ER50 | er50um | 4.85 | |
CD010123.5050152 | cat50-er50-6 \“ | 6 \“ | ER50 | er50um | 5.55 | ||||
CD010123.5050203. | cat50-er50-8“ | 8 \“ | ER50 | er50um | 5.7 |
