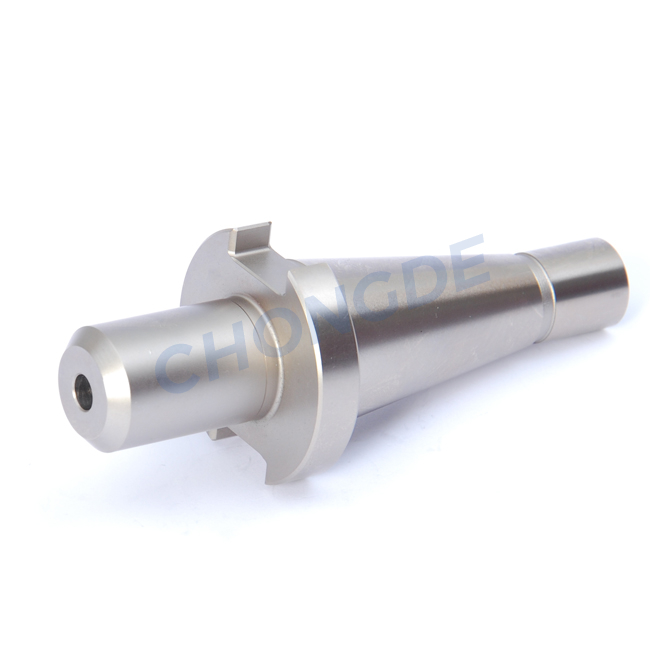

Chongde NT30 / 40/50 SLN端铣刀工具架
Chongde NT30 / 40/50末端铣刀（SLN）工具架适用于DIN1835-B的支架，用切割工具的固体表面，高速和高精度加工。平衡为12,000 rpm或18000rpm这些端铣刀/适配器非常多功能，应用于具有NT30 / 40/50锥形锭子的机器中的刚性加工操作。锥形接地为AT3规格或更好地与主轴接触。
特征：
用完内部柄锥：≤0.002mm;
材质：20crmnti;硬度：56-60HRC;
动态平衡：G6.3 12000rpm / 18000rpm;
冷却剂通过;
锥度容差：≤T3;锥度由德国制造的Diebold标准检查工具测试;
镍涂层或波兰镍涂层工具架表面：防锈，防腐，耐用性更好。
我们的优势
刚性好;
零件加工和表面处理尺寸的高精度稳定性;
使用寿命改善切削工具;
在重切割过程中，由振动引起的锥形柄磨损;
ATC重复高精度的操作;
含镍涂层的出现，产品是防锈，防腐和耐用性更好。

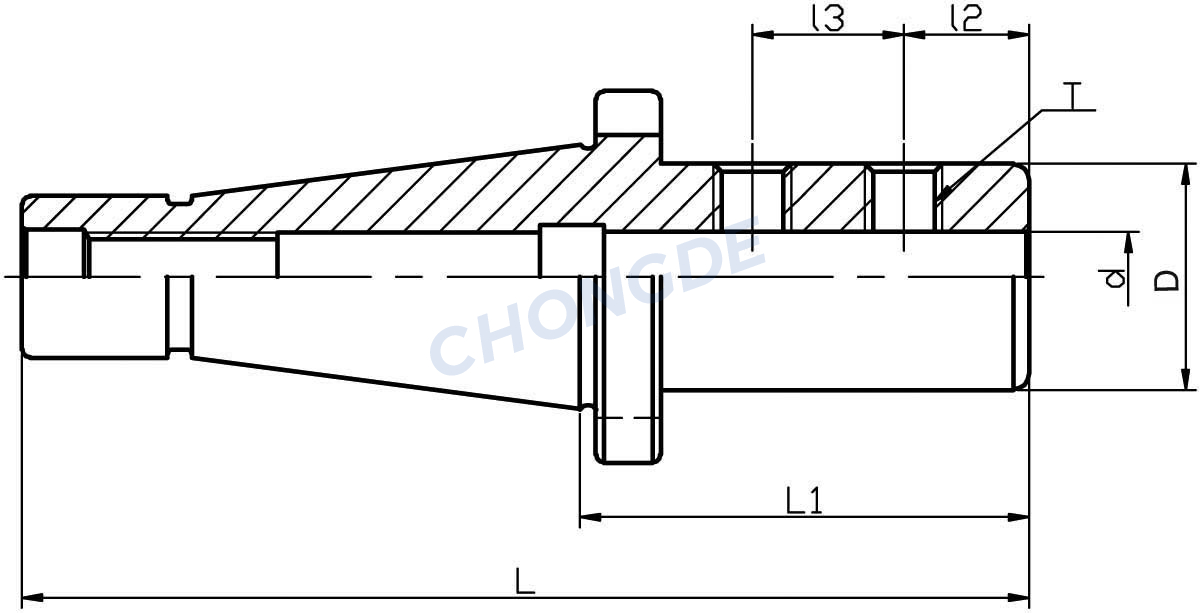

订单号。 | 型号-D | D | L1 | L | L2 | L3 | T | kgs. |
CD180202.3006040 | NT30-SLN6-40 | 25 | 40 | 108.4 | 18 | - | m6x1.0p. | 0.5 |
CD180202.3008040 | NT30-SLN8-40 | 28 | 40 | 108.4 | 18 | - | m8x1.25p. | 0.6 |
CD180202.3010040 | NT30-SLN10-40 | 35 | 40 | 108.4 | 20 | - | m10x1.5p. | 0.6 |
CD180202.3012040 | NT30-SLN12-40 | 42 | 50 | 108.4 | 22.5 | - | m12x1.75p. | 0.65 |
CD180202.3016050 | NT30-SLN16-50 | 48 | 50 | 118.4 | 24 | - | m14x2.0p. | 0.75 |
CD180202.3020063 | NT30-SLN20-63 | 52 | 63 | 131.4 | 25 | - | m16x2.0p. | 1.1 |
CD180202.302508080 | NT30-SLN25-80 | 65 | 80 | 148.4 | 24 | 25 | m18x2.0p. | 1.2 |
CD180202.4006050 | NT40-SLN6-50 | 25 | 50 | 143.4 | 18 | - | m6x1.0p. | 0.9 |
CD180202.4008050. | NT40-SLN8-50 | 28 | 50 | 143.4 | 18 | - | m8x1.25p. | 0.95 |
CD180202.4010050 | NT40-SLN10-50 | 35 | 50 | 143.4 | 20 | - | m10x1.5p. | 1.1 |
CD180202.4012050. | NT40-SLN12-50 | 42 | 50 | 143.4 | 22.5 | - | m12x1.75p. | 1 |
CD180202.4016063 | NT40-SLN16-63 | 48 | 63 | 143.4 | 24 | - | m14x2.0p. | 1.4 |
CD180202.4020063 | NT40-SLN20-63 | 52 | 63 | 143.4 | 25 | - | m16x2.0p. | 1.45 |
CD180202.4025080. | NT40-SLN25-80 | 65 | 80 | 173.4 | 24 | 25 | m18x2.0p. | 2.1 |
CD180202.4032080 | NT40-SLN32-80 | 72 | 80 | 173.4 | 24 | 28 | m20x2.0p. | 2.5 |
CD180202.5006063 | NT50-SLN6-63. | 25 | 63 | 189.8 | 18 | - | m6x1.0p. | 2.9 |
CD180202.5008063 | NT50-SLN8-63. | 28 | 63 | 189.8 | 18 | - | m8x1.25p. | 3 |
CD180202.5010063 | NT50-SLN10-63 | 35 | 63 | 189.8 | 20 | - | m10x1.5p. | 3.2 |
CD180202.5012063 | NT50-SLN12-63 | 42 | 63 | 189.8 | 22.5 | - | m12x1.75p. | 3.3 |
CD180202.5016063 | NT50-SLN16-63. | 48 | 63 | 189.8 | 24 | - | m14x2.0p. | 3.5 |
CD180202.5020063 | NT50-SLN20-63 | 52 | 63 | 189.8 | 25 | - | m16x2.0p. | 3.6 |
CD180202.5025080. | NT50-SLN25-80 | 65 | 80 | 206.8 | 24 | 25 | m18x2.0p. | 4.2 |
CD180202.5032080. | NT50-SLN32-80. | 72 | 80 | 206.8 | 24 | 28 | m20x2.0p. | 4.4 |
CD180202.5040100 | NT50-SLN40-100. | 90 | 100 | 226.8 | 30 | 32 | m20x2.0p. | 4.4 |
CD180202.5042100 | NT50-SLN42-100 | 90 | 100 | 226.8 | 30 | 32 | m20x2.0p. | 4.2 |
CD180202.5040120 | NT50-SLN40-120 | 90 | 120 | 246.8 | 30 | 32 | m20x2.0p. | 4.6 |
CD180202.50501020 | NT50-SLN50-120 | 100 | 120 | 246.8 | 35 | 35 | m24x2.0p. | 4.8 |
CD180202.5063120 | NT50-SLN63-120 | 125 | 120 | 246.8 | 40 | 40 | m24x2.0p. | 5.4 |
