BT GSK工具架系列具有较少的突出长度和比普通ER工具架更少的接触面积，因此可以提供更高的径向切割力，大大增加夹紧动力。 BT GSK Chuck在高速切削过程中具有更稳定的特性，改善了使用寿命。 BT GSK工具支架更适合于更高的速度和更高的精度切割。
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
6.超出内部柄锥：≤0.002mm;带夹头的同轴度：≤0.005mm;
7.动态余额可以做到：G2.5 30000RPM;
8.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.镍涂层外观，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

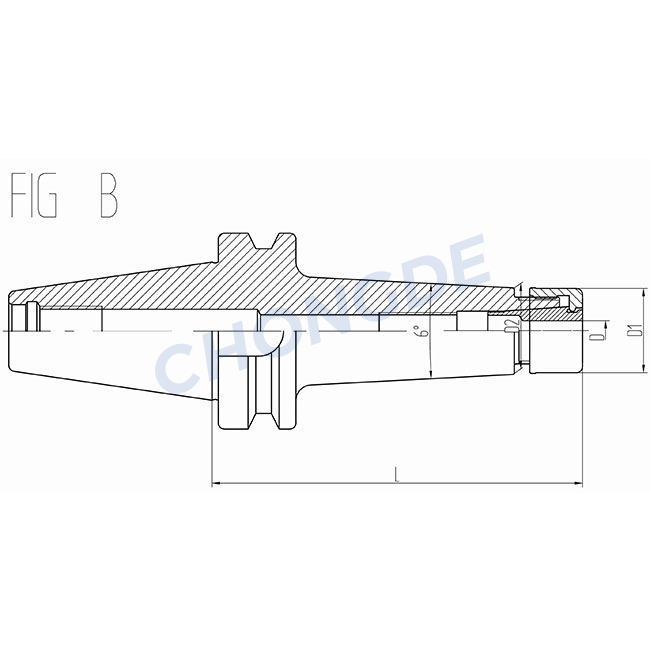

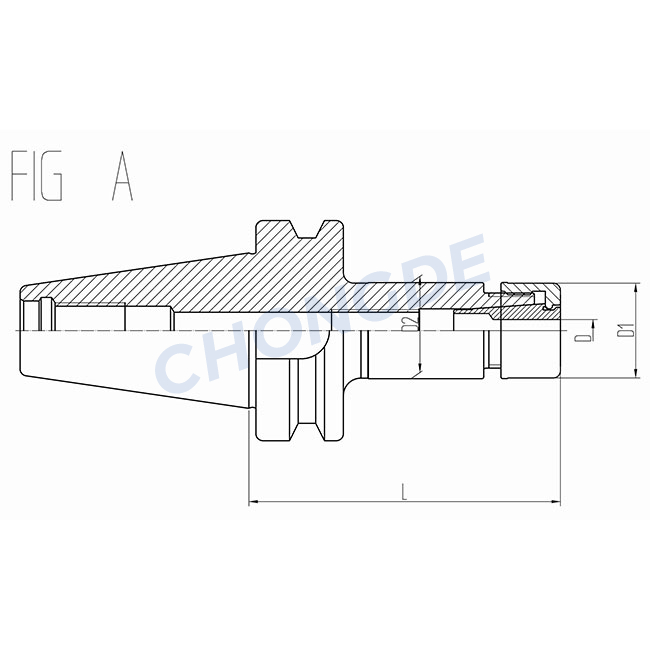

订单号。 | 型号。 | D | L | D1 | coll | 扳手 | 无花果 | kgs. |
CD020107.3006165 | BT30-GSK6-165 | 2〜6 | 165 | 16 | CSK6 | GH16 | B | 0.7 |
CD020107.3006060 | BT30-GSK6-60 | 60 | 19.5 | GH19 | A | 0.7 | ||
CD020107.3006090. | BT30-GSK6-90 | 90 | A | 0.7 | ||||
CD020107.3006120 | BT30-GSK6-120 | 120 | B | 0.8 | ||||
CD020107.3010045 | BT30-GSK10-45 | 2〜10 | 45 | 27.1 | CSK10 | GH27 | A | 0.8 |
CD020107.3010060 | BT30-GSK10-60 | 60 | A | 0.9 | ||||
CD020107.3010075 | BT30-GSK10-75 | 75 | A | 1 | ||||
CD020107.3010090 | BT30-GSK10-90 | 90 | A | 1 | ||||
CD020107.3010120 | BT30-GSK10-120 | 120 | A | 1.1 | ||||
CD020107.3013060 | BT30-GSK13-60 | 3〜13 | 60 | 33 | CSK13 | GH33 | A | 1 |
CD020107.3013090 | BT30-GSK13-90 | 90 | A | 1.1 | ||||
CD020107.3013120 | BT30-GSK13-120 | 120 | B | 1.2 | ||||
CD020107.3016060 | BT30-GSK16-60 | 2〜16 | 60 | 40 | CSK16 | GH40. | A | 1.1 |
CD020107.3016075 | BT30-GSK16-75 | 75 | A | 1.2 | ||||
CD020107.3016090. | BT30-GSK16-90 | 90 | A | 1.2 | ||||
CD020107.3016120 | BT30-GSK16-120 | 120 | A | 1.3 | ||||
CD020107.3020060 | BT30-GSK20-60 | 4〜20 | 60 | 48 | CSK20 | GH48 | A | 0.7 |
CD020107.3020075 | BT30-GSK20-75 | 75 | A | 0.9 | ||||
CD020107.3020090 | BT30-GSK20-90 | 90 | A | 1.2 | ||||
CD020107.3025090. | BT30-GSK25-90 | 6〜25 | 90 | 55 | CSK25 | GH55 | A | 1.5 |
CD020107.4006060 | BT40-GSK6-60 | 2〜6 | 60 | 19.5 | CSK6 | GH19 | A | 1 |
CD020107.4006090 | BT40-GSK6-90. | 90 | A | 1.1 | ||||
CD020107.4006120 | BT40-GSK6-120 | 120 | B | 1.4 | ||||
CD020107.4006150 | BT40-GSK6-150 | 150 | B | 1.5 | ||||
CD020107.4010060 | BT40-GSK10-60 | 2〜10 | 60 | 27.1 | CSK10 | GH27 | A | 1.1 |
CD020107.4010075 | BT40-GSK10-75 | 75 | A | 1.2 | ||||
CD020107.4010090 | BT40-GSK10-90 | 90 | A | 1.2 | ||||
CD020107.4010120 | BT40-GSK10-120 | 120 | B | 1.4 | ||||
CD020107.4010150 | BT40-GSK10-150 | 150 | B | 1.6 | ||||
CD020107.4010180 | BT40-GSK10-180 | 180 | B | 1.6 | ||||
CD020107.4013060 | BT40-GSK13-60 | 3〜13 | 60 | 33 | CSK13 | GH33 | A | 1.3 |
CD020107.4013090 | BT40-GSK13-90. | 90 | A | 1.4 | ||||
CD020107.4013120 | BT40-GSK13-120 | 120 | B | 1.5 | ||||
CD020107.4016060 | BT40-GSK16-60 | 2〜16 | 60 | 40 | CSK16 | GH40. | A | 1.3 |
CD020107.4016075 | BT40-GSK16-75 | 75 | A | 1.4 | ||||
CD020107.4016090 | BT40-GSK16-90. | 90 | A | 1.5 |
