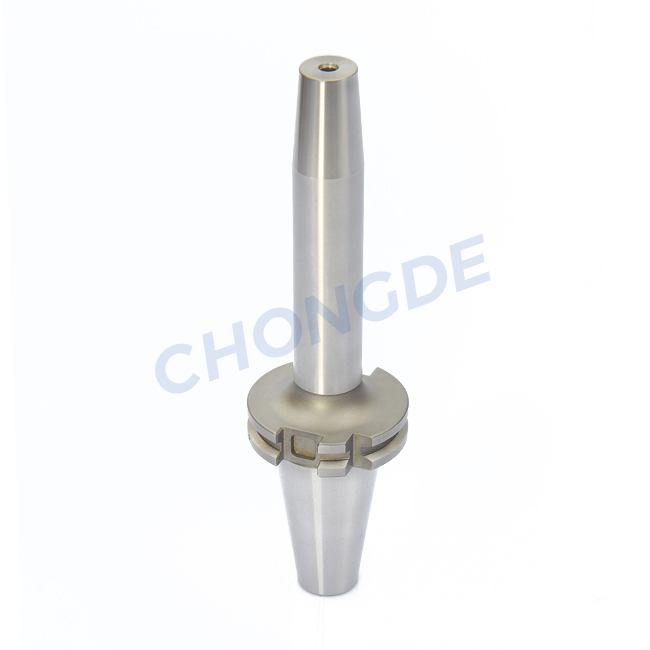

超精度SK40 / 50收缩配合CNC工具架
SK40 / 50 Shank收缩配合工具架采用特殊的热膨胀不锈钢制成。硬度：58-62HRC，使用工业吹风机简单的热空气加热装置。高精度，预设动态平衡：G2.5 25000rpm，适用于高速高精度加工。 SK40 / 50收缩型工具支架的耗尽高达0.003mm。它可以通过高精度和稳定的性能反复夹紧超过2000次。
SK40 / 50收缩配合工具架可用于铣削，钻孔，铰孔等加工，从高速加工，整理加工，重切割。工具安装部分没有螺母和夹头等的部件。简单，超薄形状可以将工具的突出长度设置为最短，以获得强度且稳定的夹紧力，保持高精度。
特征：
材料：加热不锈钢;
跳动：≤0.003mm;
硬度：58-62HRC;
动态平衡：G2.5 25000RPM
防尘性很好;
斜坡设计;
使用诱导收缩机安装直柄工具。
我们的优势
用夹紧合适的切割工具用完：≤3μ;
采用全圆360°收缩夹紧工具手柄直径，均匀，实现完美的环绕夹紧;
没有任何添加，对称的几何形状，平衡稳定性好，适用于高速加工;
夹紧工具后工具架和切割工具之间没有间隙。芯片，冷却液和灰尘不能进入工具。
非常轻盈薄的斜坡形状，尽量避免发生干扰工件;
工具突起是最短的，刚性高，稳定夹紧强并保持高精度。
订单号。 | 型号。 | 锥度类型 | 尺寸（mm） | |||||
DC. | D1 | D2 | L | L1 | ||||
CD050301.4004080. | SK40-SSD04-80 | SK40 | 4 | 15 | 20 | 80 | 20 | - |
CD050301.4006080 | SK40-SSD06-80. | SK40 | 6 | 21 | 27 | 80 | 36 | 10 |
CD050301.4006120 | SK40-SSD06-120 | SK40 | 6 | 21 | 27 | 120 | 36 | 10 |
CD050301.4006160 | SK40-SSD06-160 | SK40 | 6 | 21 | 27 | 160 | 36 | 10 |
CD050301.4008080 | SK40-SSD08-80. | SK40 | 8 | 21 | 27 | 80 | 36 | 10 |
CD050301.4008120 | SK40-SSD08-120 | SK40 | 8 | 21 | 27 | 120 | 36 | 10 |
CD050301.4008160 | SK40-SSD08-160 | SK40 | 8 | 21 | 27 | 160 | 36 | 10 |
CD050301.4010080 | SK40-SSD10-80 | SK40 | 10 | 24 | 32 | 80 | 40 | 10 |
CD050301.4010120 | SK40-SSD10-120 | SK40 | 10 | 24 | 32 | 120 | 40 | 10 |
CD050301.4010160 | SK40-SSD10-160 | SK40 | 10 | 24 | 32 | 160 | 40 | 10 |
CD050301.4012080 | SK40-SSD12-80 | SK40 | 12 | 24 | 32 | 80 | 45 | 10 |
CD050301.4012120 | SK40-SSD12-120 | SK40 | 12 | 24 | 32 | 120 | 45 | 10 |
CD050301.4012160 | SK40-SSD12-160 | SK40 | 12 | 24 | 32 | 160 | 45 | 10 |
CD050301.4016080 | SK40-SSD16-80 | SK40 | 16 | 27 | 34 | 80 | 48 | 10 |
CD050301.4016120 | SK40-SSD16-120 | SK40 | 16 | 27 | 34 | 120 | 48 | 10 |
CD050301.4016160 | SK40-SSD16-160 | SK40 | 16 | 27 | 34 | 160 | 48 | 10 |
CD050301.4020080 | SK40-SSD20-80 | SK40 | 20 | 33 | 42 | 80 | 50 | 10 |
CD050301.4020120 | SK40-SSD20-120 | SK40 | 20 | 33 | 42 | 120 | 50 | 10 |
CD050301.4020160 | SK40-SSD20-160 | SK40 | 20 | 33 | 42 | 160 | 50 | 10 |
CD050301.4025100 | SK40-SSD25-100 | SK40 | 25 | 44 | 53 | 100 | 56 | 10 |
CD050301.4025160 | SK40-SSD25-160 | SK40 | 25 | 44 | 53 | 160 | 56 | 10 |
CD050301.4032100 | SK40-SSD32-100 | SK40 | 32 | 44 | 53 | 100 | 60 | 10 |
CD050301.4032160 | SK40-SSD32-160 | SK40 | 32 | 44 | 53 | 160 | 60 | 10 |
CD050302.5006080 | SK50-SSD06-80. | SK50. | 6 | 21 | 27 | 80 | 36 | 10 |
CD050302.5006120 | SK50-SSD06-120 | SK50. | 6 | 21 | 27 | 120 | 36 | 10 |
CD050302.5006160 | SK50-SSD06-160 | SK50. | 6 | 21 | 27 | 160 | 36 | 10 |
CD050302.5008080 | SK50-SSD08-80 | SK50. | 8 | 21 | 27 | 80 | 36 | 10 |
CD050302.5008120 | SK50-SSD08-120 | SK50 | 8 | 21 | 27 | 120 | 36 | 10 |
CD050302.5008160 | SK50-SSD08-160 | SK50 | 8 | 21 | 27 | 160 | 36 | 10 |
CD050302.5010080 | SK50-SSD10-80 | SK50 | 10 | 24 | 32 | 80 | 40 | 10 |
CD050302.5010120 | SK50-SSD10-120 | SK50 | 10 | 24 | 32 | 120 | 40 | 10 |
CD050302.5010160 | SK50-SSD10-160 | SK50 | 10 | 24 | 32 | 160 | 40 | 10 |
CD050302.5012080. | SK50-SSD12-80 | SK50 | 12 | 24 | 32 | 80 | 45 | 10 |
CD050302.5012120 | SK50-SSD12-120 | SK50 | 12 | 24 | 32 | 120 | 45 | 10 |
CD050302.5012160 | SK50-SSD12-160 | SK50. | 12 | 24 | 32 | 160 | 45 | 10 |
CD050302.5016080. | SK50-SSD16-80. | SK50 | 16 | 27 | 34 | 80 | 48 | 10 |
CD050302.5016120 | SK50-SSD16-120 | SK50. | 16 | 27 | 34 | 120 | 48 | 10 |
CD050302.5016160 | SK50-SSD16-160 | SK50. | 16 | 27 | 34 | 160 | 48 | 10 |
CD050302.5020080 | SK50-SSD20-80 | SK50. | 20 | 33 | 42 | 80 | 50 | 10 |
CD050302.5020120 | SK50-SSD20-120 | SK50. | 20 | 33 | 42 | 120 | 50 | 10 |
CD050302.5020160 | SK50-SSD20-160 | SK50. | 20 | 33 | 442 | 160 | 50 | 10 |
CD050302.5025100 | SK50-SSD25-100 | SK50. | 25 | 44 | 53 | 100 | 56 | 10 |
CD050302.5025160 | SK50-SSD25-160 | SK50. | 25 | 44 | 53 | 160 | 56 | 10 |
CD050302.5032100 | SK50-SSD32-100 | SK50. | 32 | 44 | 53 | 100 | 60 | |
CD050302.5032160 | SK50-SSD32-160 | SK50. | 32 | 44 | 53 | 160 | 60 | |
