镍涂料SK（DIM69871）GSK高速夹头夹头
SK（DIN69871）锥形柄GSK夹头工具架系列具有较少的突出长度和比普通ER工具支架更少的接触面积，因此可以提供更高的径向切割力，大大增加夹紧动力。 SK（DIN69871）GSK Chuck在高速切割过程中有更稳定的特点，改善了使用寿命。 SK GSK工具架更适合更高的速度和更高的精度切割。 SK40 / 50持有人均衡为30,000 000rpm g2.5。
1.材质：20crmnti或JIS-SCM415;
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
6.超出内部柄锥：≤0.002mm;带夹头的同轴度：≤0.005mm;
7.动态余额可以做到：G2.5 30000RPM;
8.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切削工具;
4.在重切割过程中，由振动引起的锥形柄的磨损减小;
5. ATC以高精度重复操作;
6.镍涂层外观，产品是防锈，防腐和耐用性更好，清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

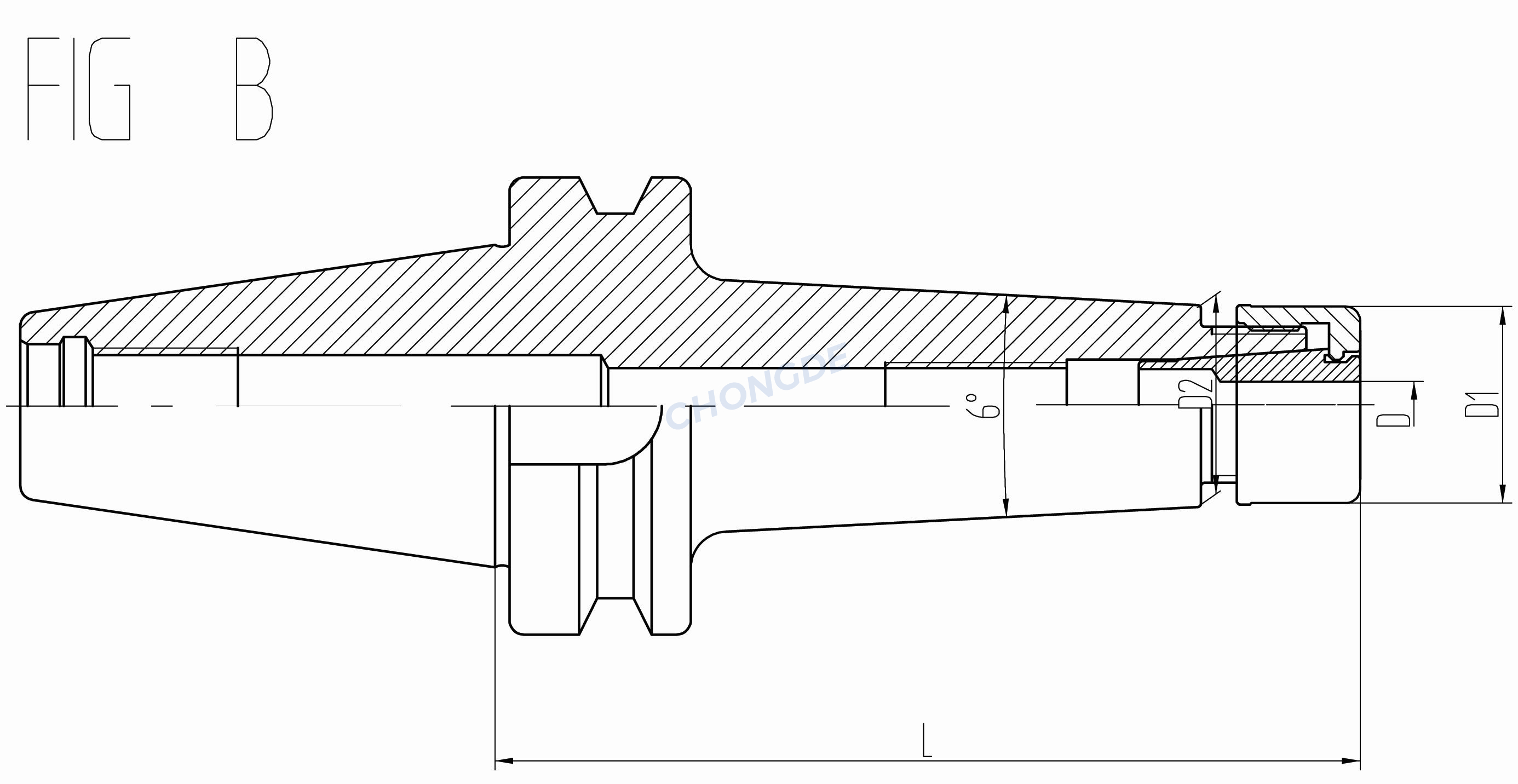

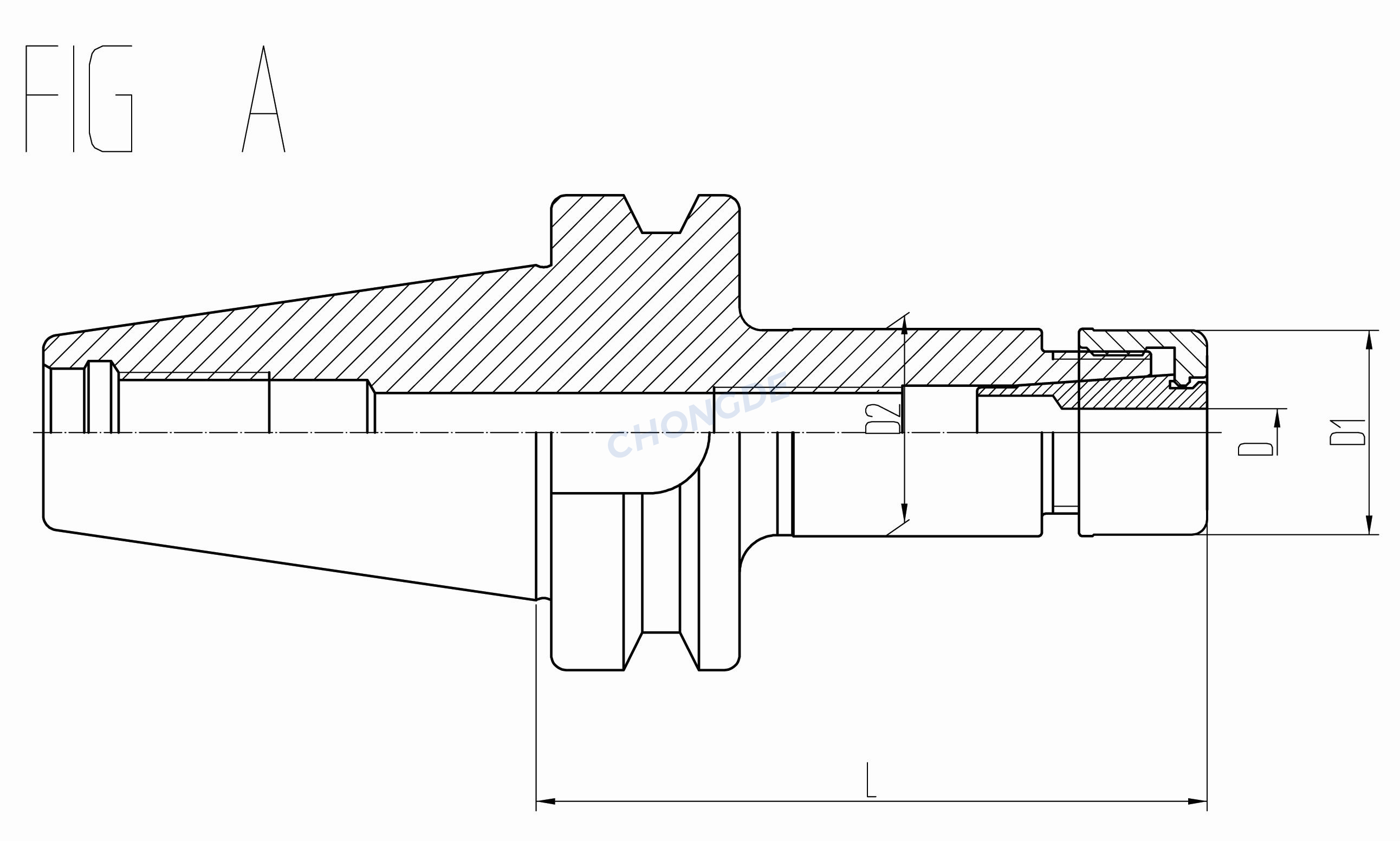

订单号。 | 型号。 | D | L | D1 | 夹子 | 扳手 | 无花果 | kgs. |
CD020109.3006060 | SK30-GSK6-60 | 2〜6 | 60 | 19.5 | CSK6 | GH19 | A | 0.7 |
CD020109.3006090 | SK30-GSK6-90 | 90 | A | 0.7 | ||||
CD020109.3006120 | SK30-GSK6-120 | 120 | B | 0.8 | ||||
CD020109.3010045 | SK30-GSK10-45 | 2〜10 | 45 | 27.1 | CSK10 | GH27 | A | 0.8 |
CD020109.3010060 | SK30-GSK10-60 | 60 | A | 0.9 | ||||
CD020109.3010075 | SK30-GSK10-75 | 75 | A | 1 | ||||
CD020109.3010090 | SK30-GSK10-90. | 90 | A | 1 | ||||
CD020109.3010120 | SK30-GSK10-120 | 120 | A | 1.1 | ||||
CD020109.3013090. | SK30-GSK13-90. | 90 | 33 | CSK13 | GH33 | A | 1.1 | |
CD020109.3016060 | SK30-GSK16-60 | 2〜16 | 60 | 40 | CSK16 | GH40. | A | 1.1 |
CD020109.3016075 | SK30-GSK16-75 | 75 | A | 1.2 | ||||
CD020109.3016090. | SK30-GSK16-90. | 90 | A | 1.2 | ||||
CD020109.3016120 | SK30-GSK16-120 | 120 | A | 1.3 | ||||
CD020109.3020060 | SK30-GSK20-60 | 4〜20 | 60 | 48 | CSK20 | GH48 | A | 0.7 |
CD020109.3020075 | SK30-GSK20-75 | 75 | A | 0.9 | ||||
CD020109.3020090 | SK30-GSK20-90 | 90 | A | 1.2 | ||||
CD020109.3025090. | SK30-GSK25-90. | 6〜25 | 90 | 55 | CSK25 | GH55 | A | 1.5 |
CD020109.4006060 | SK40-GSK6-60 | 2〜6 | 60 | 19.5 | CSK6 | GH19 | A | 1 |
CD020109.4006090 | SK40-GSK6-90. | 90 | A | 1.1 | ||||
CD020109.4006120 | SK40-GSK6-120 | 120 | B | 1.4 | ||||
CD020109.4006150 | SK40-GSK6-150 | 150 | B | 1.5 | ||||
CD020109.4010060 | SK40-GSK10-60 | 2〜10 | 60 | 27.1 | CSK10 | GH27 | A | 1.1 |
CD020109.4010075 | SK40-GSK10-75 | 75 | A | 1.2 | ||||
CD020109.4010090 | SK40-GSK10-90. | 90 | A | 1.2 | ||||
CD020109.4010120 | SK40-GSK10-120 | 120 | B | 1.4 | ||||
CD020109.4010150 | SK40-GSK10-150 | 150 | B | 1.6 | ||||
CD020109.4010180 | SK40-GSK10-180 | 180 | B | 1.6 | ||||
CD20109.4013090 | SK40-GSK13-90. | 3-13 | 90 | 33 | CSK13 | GH33 | A | 1.4 |
CD020109.4016060 | SK40-GSK16-60 | 2〜16 | 60 | 40 | CSK16 | GH40. | A | 1.3 |
CD020109.4016075 | SK40-GSK16-75 | 75 | A | 1.4 | ||||
CD020109.4016090. | SK40-GSK16-90. | 90 | A | 1.5 | ||||
CD020109.4016120 | SK40-GSK16-120 | 120 | A | 1.7 | ||||
CD020109.4016150 | SK40-GSK16-150 | 150 | A | 1.9 | ||||
CD020109.4016180 | SK40-GSK16-180 | 180 | A | 2 | ||||
CD020109.4020060 | SK40-GSK20-60 | 4〜20 | 60 | 48 | CSK20 | GH48 | A | 1.3 |
CD020109.4020075 | SK40-GSK20-75 | 75 | A | 1.4 | ||||
CD020109.4020090 | SK40-GSK20-90. | 90 | A | 1.6 | ||||
CD020109.4020120 | SK40-GSK20-120 | 120 | A | 2 | ||||
CD020109.4025075 | SK40-GSK25-75. | 6〜25 | 75 | 55 | CSK25 | GH55 | A | 1.7 |
CD020109.4025090. | SK40-GSK25-90. | 90 | A | 1.8 | ||||
CD020109.4025120 | SK40-GSK25-120 | 120 | A | 2 | ||||
CD020109.5006105 | SK50-GSK6-105 | 2〜6 | 105 | 19.5 | CSK6 | GH19 | A | 3.8 |
CD020109.5006135 | SK50-GSK6-135 | 135 | B | 3.9 | ||||
CD020109.5006165 | SK0-GSK6-165 | 165 | B | 4 | ||||
CD020109.5006200 | SK50-GSK6-200 | 200 | B | 4.2 | ||||
CD020109.5010105 | SK50-GSK10-105 | 2〜10 | 105 | 27.1 | CSK10 | GH27 | A | 4.2 |
CD020109.50135 | SK50-GSK10-135 | 135 | A | 4.4 | ||||
CD020109.50165 | SK50-GSK10-165 | 165 | B | 4.6 | ||||
CD020109.5010200 | SK50-GSK10-200 | 200 | B | 4.8 | ||||
CD020109.5010225 | SK50-GSK10-225 | 225 | B | 5 | ||||
CD020109.5013135 | SK50-GSK13-135 | 3-13 | 135 | 33 | CSK13 | GH33 | B | 5 |
CD020109.5016105 | SK50-GSK16-105 | 2〜16 | 105 | 40 | CSK16 | GH40. | A | 4.7 |
CD020109.5016135 | SK50-GSK16-135 | 135 | A | 4.9 | ||||
CD020109.5016165 | SK50-GSK16-165 | 165 | B | 5.1 | ||||
CD020109.5016200 | SK50-GSK16-200 | 200 | B | 5.5 | ||||
CD020109.50201055 | SK50-GSK20-105 | 4〜20 | 105 | 48 | CSK20 | GH48 | A | 4.3 |
CD020109.5020135 | SK50-GSK20-135 | 135 | A | 4.6 | ||||
CD020109.5020165 | SK50-GSK20-165 | 165 | A | 5 | ||||
CD020109.5020200. | SK50-GSK20-200 | 200 | A | 5.4 | ||||
CD020109.5025105 | SK50-GSK25-105 | 6〜25 | 105 | 55 | CSK25 | GH55 | A | 5.2 |
CD020109.5025135 | SK50-GSK25-135 | 135 | A | 5.4 | ||||
CD020109.5025165 | SK50-GSK25-165 | 165 | A | 5.6 | ||||
CD020109.5025225 | SK50-GSK25-225 | 225 | A | 6 |
