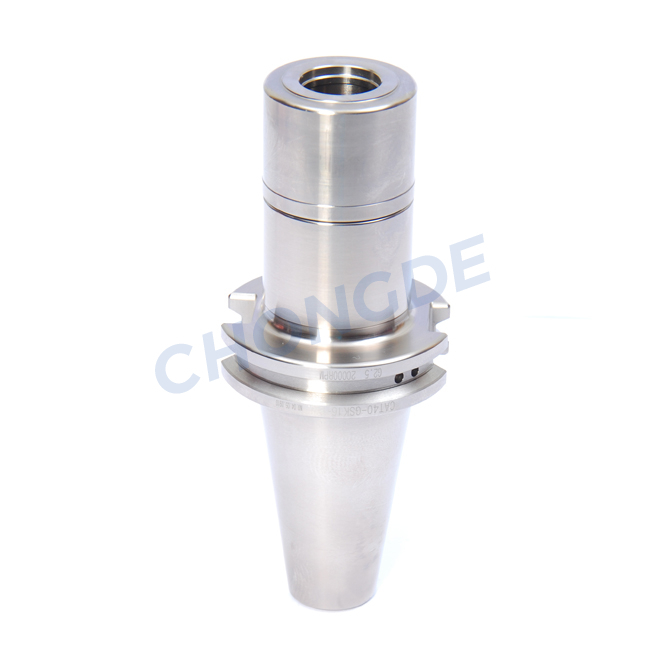

超精密猫GSK高速夹头夹头
CAT GSK工具架系列具有较少的突出长度和比普通ER工具支架更少的接触面积，因此可以提供更高的径向切割力，大大增加夹紧动力。 Cat GSK Chuck在高速切削过程中有更稳定的特点，改善了使用寿命。 CAT GSK工具架更适合更高的速度和更高的精度切割。
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
6.超出内部柄锥：≤0.002mm;带夹头的同轴度：≤0.005mm;
7.动态余额可以做到：G2.5 30000RPM;
8.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.镍涂层外观，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。
订单号。 | 型号。 | D | L | D1 | 夹子 | 扳手 | 无花果 | kgs. |
CD020112.3006060 | CAT30-CSK6-60 | 2〜6 | 60 | 20 | CSK6 | TSK6 | A | 0.7 |
CD020112.3006090 | CAT30-CSK6-90. | 90 | A | 0.7 | ||||
CD020112.3006120 | cat30-csk6-120 | 120 | B | 0.8 | ||||
CD020112.3010045 | CAT30-CSK10-45 | 2〜10 | 45 | 27.5 | CSK10 | TSK10 | A | 0.8 |
CD020112.3010060 | CAT30-CSK10-60 | 60 | A | 0.9 | ||||
CD020112.3010075 | CAT30-CSK10-75 | 75 | A | 1 | ||||
CD020112.3010090 | CAT30-CSK10-90. | 90 | A | 1 | ||||
CD020112.3010120 | CAT30-CSK10-120 | 120 | A | 1.1 | ||||
CD020112.3013060 | CAT30-CSK13-60 | 3〜13 | 60 | 37 | CSK13 | TSK13 | A | 1.1 |
CD020112.3013090. | CAT30-CSK13-90. | 90 | A | 1.3 | ||||
CD020112.3013120 | CAT30-CSK13-120 | 120 | A | 1.5 | ||||
CD020112.3016060 | CAT30-CSK16-60 | 2〜16 | 60 | 40 | CSK16 | TSK16 | A | 1.1 |
CD020112.3016075 | CAT30-CSK16-75 | 75 | A | 1.2 | ||||
CD020112.3016090. | CAT30-CSK16-90. | 90 | A | 1.2 | ||||
CD020112.3016120 | cat30-csk16-120 | 120 | A | 1.3 | ||||
CD020112.3020060 | CAT30-CSK20-60 | 4〜20 | 60 | 48 | CSK20 | TSK20 | A | 0.7 |
CD020112.3020075 | CAT30-CSK20-75 | 75 | A | 0.9 | ||||
CD020112.3020090 | CAT30-CSK20-90. | 90 | A | 1.2 | ||||
CD020112.3025090. | cat30-csk25-90. | 6〜25 | 90 | 55 | CSK25 | TSK25 | A | 1.5 |
CD020112.4006060 | CAT40-CSK6-60 | 2〜6 | 60 | 20 | CSK6 | TSK6 | A | 1 |
CD020112.4006090 | CAT40-CSK6-90. | 90 | A | 1.1 | ||||
CD020112.4006120 | cat40-csk6-120 | 120 | B | 1.4 | ||||
CD020112.4006150 | cat40-csk6-150 | 150 | B | 1.5 | ||||
CD020112.4010060 | CAT40-CSK10-60 | 2〜10 | 60 | 27.5 | CSK10 | TSK10 | A | 1.1 |
CD020112.4010075 | cat40-csk10-75 | 75 | A | 1.2 | ||||
CD020112.4010090 | Cat40-CSK10-90. | 90 | A | 1.2 | ||||
CD020112.4010120 | CAT40-CSK10-120 | 120 | B | 1.4 | ||||
CD020112.4010150 | cat40-csk10-150 | 150 | B | 1.6 | ||||
CD020112.4010180 | cat40-csk10-180 | 180 | B | 1.6 | ||||
CD020112.4013060 | CAT40-CSK13-60 | 60 | 37 | CSK13 | TSK13 | A | 1.3 | |
CD020112.4013090 | CAT40-CSK13-90. | 90 | A | 1.5 | ||||
CD020112.4016090 | CAT40-CSK16-60 | 2〜16 | 60 | 40 | CSK16 | TSK16 | A | 1.3 |
CD020112.4016075 | cat40-csk16-75. | 75 | A | 1.4 | ||||
CD020112.4016090 | CAT40-CSK16-90. | 90 | A | 1.5 | ||||
CD020112.4016120 | cat40-csk16-120 | 120 | A | 1.7 | ||||
CD020112.4016150 | cat40-csk16-150 | 150 | A | 1.9 | ||||
CD020112.4016180 | cat40-csk16-180 | 180 | A | 2 | ||||
CD020112.4020060 | CAT40-CSK20-60 | 4〜20 | 60 | 48 | CSK20 | TSK20 | A | 1.3 |
CD020112.4020075 | CAT40-CSK20-75 | 75 | A | 1.4 | ||||
CD020112.4020090 | CAT40-CSK20-90. | 90 | A | 1.6 | ||||
CD020112.4020120 | CAT40-CSK20-120 | 120 | A | 2 | ||||
CD020112.4025075 | CAT40-CSK25-75 | 6〜25 | 75 | 55 | CSK25 | TSK25 | A | 1.7 |
CD020112.4025090 | CAT40-CSK25-90. | 90 | A | 1.8 | ||||
CD020112.4025120 | cat40-csk25-120 | 120 | A | 2 | ||||
CD020112.5006105 | CAT50-CSK6-105 | 2〜6 | 105 | 19.5 | CSK6 | TSK6 | A | 3.8 |
CD020112.5006135 | CAT50-CSK6-135 | 135 | B | 3.9 | ||||
CD020112.5006165 | CAT50-CSK6-165 | 165 | B | 4 | ||||
CD020112.5006200 | CAT50-CSK6-200 | 200 | B | 4.2 | ||||
CD020112.50101055 | CAT50-CSK10-105 | 2〜10 | 105 | 27.5 | CSK10 | TSK10 | A | 4.2 |
CD020112.50135 | CAT50-CSK10-135 | 135 | A | 4.4 | ||||
CD020112.50165 | CAT50-CSK10-165. | 165 | B | 4.6 | ||||
CD020112.5010200 | CAT50-CSK10-200 | 200 | B | 4.8 | ||||
CD020112.5010225 | CAT50-CSK10-225 | 225 | B | 5 | ||||
CD020112.5016105 | cat50-csk16-105 | 2〜16 | 105 | 40 | CSK16 | TSK16 | A | 4.7 |
CD020112.5016135 | CAT50-CSK16-135 | 135 | A | 4.9 | ||||
CD020112.5016165 | CAT50-CSK16-165 | 165 | B | 5.1 | ||||
CD020112.5016200 | CAT50-CSK16-200 | 200 | B | 5.5 | ||||
CD020112.5020105. | CAT50-CSK20-105 | 4〜20 | 105 | 48 | CSK20 | TSK20 | A | 4.3 |
CD020112.5020135 | CAT50-CSK20-135 | 135 | A | 4.6 | ||||
CD020112.5020165 | CAT50-CSK20-165 | 165 | A | 5 | ||||
CD020112.5020200. | CAT50-CSK20-200 | 200 | A | 5.4 | ||||
CD020112.5025105 | cat50-csk25-105 | 6〜25 | 105 | 55 | CSK25 | TSK25 | A | 5.2 |
CD020112.5025135 | CAT50-CSK25-135 | 135 | A | 5.4 | ||||
CD020112.5025165 | CAT50-CSK25-165 | 165 | A | 5.6 | ||||
CD020112.5025225 | CAT50-CSK25-225 | 225 | A | 6 |
