镍涂层HSK63A SLN端铣刀工具架
Chongde HSK63A端铣刀（SLN）工具架适用于DIN1835-B的支架，使用切削刀具的固体表面，高速和高精度加工。平衡为12,000 rpm或18000rpm这些端铣刀/适配器非常多功能和应在具有HSK63A锥形主轴的机器中用于刚性加工操作。锥形接地为AT3规格或更好地与主轴接触。
特征：
用完内部柄锥：≤0.002mm;
材质：20crmnti;硬度：56-60HRC;
动态平衡：G6.3 12000rpm / 18000rpm;
冷却剂通过;
锥度容差：≤T3;锥度由德国制造的Diebold标准检查工具测试;
镍涂层或波兰镍涂层工具架表面：防锈，防腐，耐用性更好。
我们的优势
刚性好;
零件加工和表面处理尺寸的高精度稳定性;
使用寿命改善切削工具;
在重切割过程中，由振动引起的锥形柄磨损;
ATC重复高精度的操作;
含镍涂层的出现，产品是防锈，防腐和耐用性更好。

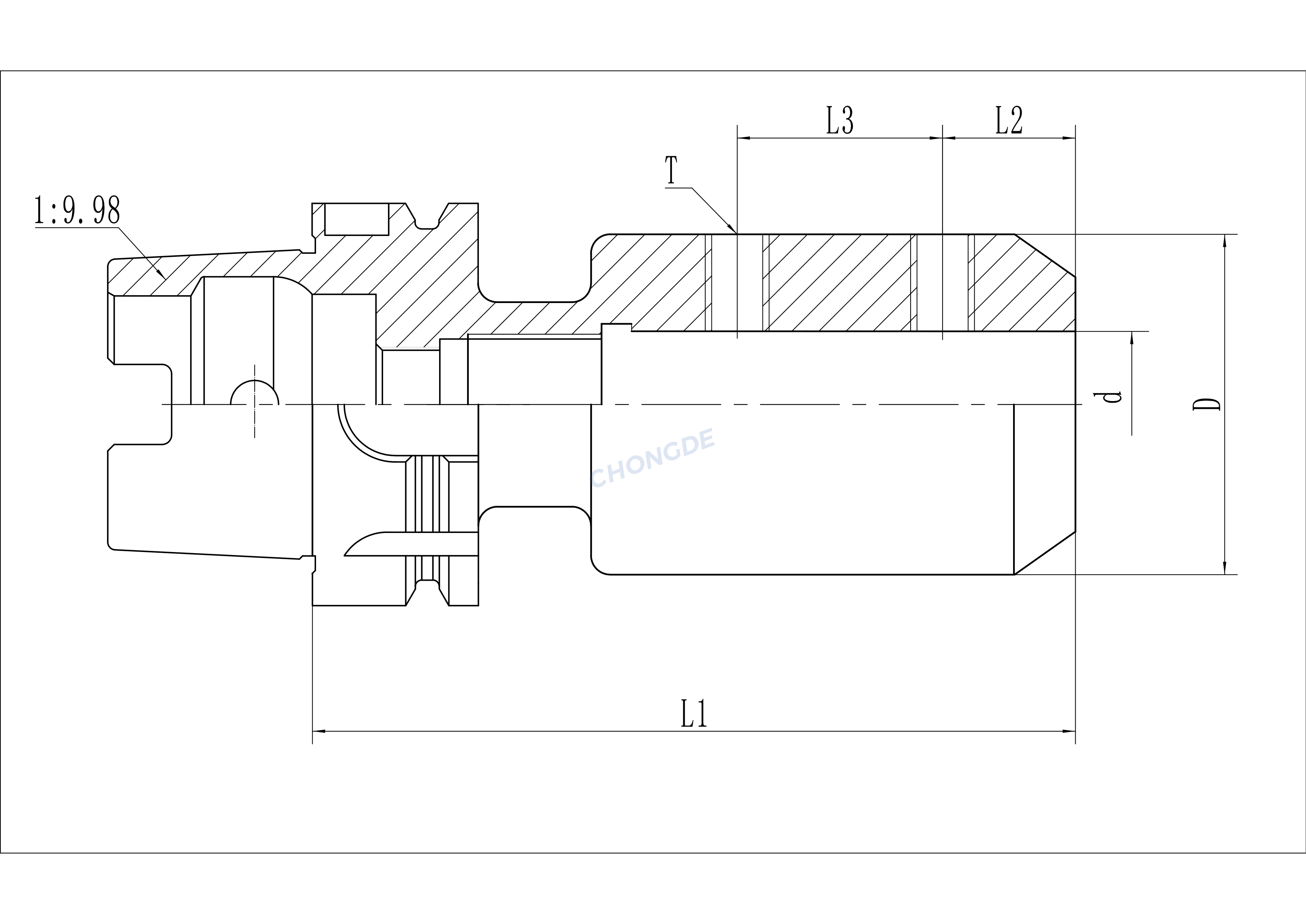

订单号。 | 型号。 | 柄 | d | D | L1 | L2 | L3 | T |
CD110903.6306065 | HSK63A-SLN6-65 | HSK63A | 6 | 25 | 65 | 18 | - | M6x1. |
CD110903.6306100 | HSK63A-SLN6-100 | HSK63A | 6 | 25 | 100 | |||
CD110903.6306120 | HSK63A-SLN6-120 | HSK63A | 6 | 25 | 120 | |||
CD110903.6306160 | HSK63A-SLN6-160 | HSK63A | 6 | 25 | 160 | |||
CD110903.6308065 | HSK63A-SLN8-65 | HSK63A | 8 | 28 | 65 | 18 | M8x1.25 | |
CD110903.6308100 | HSK63A-SLN8-100 | HSK63A | 8 | 28 | 100 | |||
CD110903.6308120 | HSK63A-SLN8-120 | HSK63A | 8 | 28 | 120 | |||
CD110903.6308160 | HSK63A-SLN8-160 | HSK63A | 8 | 28 | 160 | |||
CD110903.6310065 | HSK63A-SLN10-65 | HSK63A | 10 | 35 | 65 | 20 | M10x1.5 | |
CD110903.6310100 | HSK63A-SLN10-100 | HSK63A | 10 | 35 | 100 | |||
CD110903.6310120 | HSK63A-SLN10-120 | HSK63A | 10 | 35 | 120 | |||
CD110903.6310160 | HSK63A-SLN10-160 | HSK63A | 10 | 35 | 160 | |||
CD110903.6312080 | HSK63A-SLN12-80 | HSK63A | 12 | 42 | 80 | 22.5 | M12x1.75. | |
CD110903.6312100 | HSK63A-SLN12-100 | HSK63A | 12 | 42 | 100 | |||
CD110903.6312120 | HSK63A-SLN12-120 | HSK63A | 12 | 42 | 120 | |||
CD110903.6312160 | HSK63A-SLN12-160 | HSK63A | 12 | 42 | 160 | |||
CD110903.6314080 | HSK63A-SLN14-80 | HSK63A | 14 | 44 | 80 | 22.5 | M12x1.75. | |
CD110903.6314100 | HSK63A-SLN14-100 | HSK63A | 14 | 44 | 100 | |||
CD110903.6314120 | HSK63A-SLN14-120 | HSK63A | 14 | 44 | 120 | |||
CD110903.6314160 | HSK63A-SLN14-160 | HSK63A | 14 | 44 | 160 | |||
CD110903.6316080 | HSK63A-SLN16-80 | HSK63A | 16 | 48 | 80 | 24 | M14X2. | |
CD110903.6316100 | HSK63A-SLN16-100 | HSK63A | 16 | 48 | 100 | |||
CD110903.6316120 | HSK63A-SLN16-120 | HSK63A | 16 | 48 | 120 | |||
CD110903.6316160 | HSK63A-SLN16-160 | HSK63A | 16 | 48 | 160 | |||
CD110903.6318080 | HSK63A-SLN18-80 | HSK63A | 18 | 50 | 80 | 24 | M14X2. | |
CD110903.6318100 | HSK63A-SLN18-100 | HSK63A | 18 | 50 | 100 | |||
CD110903.6318120 | HSK63A-SLN18-120 | HSK63A | 18 | 50 | 120 | |||
CD110903.6318160 | HSK63A-SLN18-160 | HSK63A | 18 | 50 | 160 | |||
CD110903.6320080 | HSK63A-SLN20-80 | HSK63A | 20 | 52 | 80 | 25 | m16x2. | |
CD110903.6320120 | HSK63A-SLN20-120 | HSK63A | 20 | 52 | 120 | |||
CD110903.6320160 | HSK63A-SLN20-160 | HSK63A | 20 | 52 | 160 | |||
CD110903.6325110 | HSK63A-SLN25-110 | HSK63A | 25 | 65 | 110 | 24 | 25 | m18x2 |
CD110903.6325160 | HSK63A-SLN25-160 | HSK63A | 25 | 65 | 160 | |||
CD110903.6332110 | HSK63A-SLN32-110 | HSK63A | 32 | 72 | 110 | 24 | 28 | M20x2. |
CD110903.6332120 | HSK63A-SLN32-120 | HSK63A | 32 | 72 | 120 | |||
CD110903.6332160 | HSK63A-SLN32-160 | HSK63A | 32 | 72 | 160 | |||
CD110903.6340125 | HSK63A-SLN40-125 | HSK63A | 40 | 80 | 125 | 30 | 32 | M20x2. |
