HSK刀架已成为高速切割加工制造技术的重要组成部分。传统BT工具系统的加工性能难以满足高速切割的要求。目前，HSK（德国Hohl Shape Kegel缩写）工具系统广泛应用于美国的高速切割，KM工具系统，日本NC5，大加工具系统等，所有这些都属于两者 - 侧绑定工具手柄。
HSK ER弹簧夹夹夹车床刀架，机械主轴和切割工具等配件。高精度HSK柄工具架，平衡G6.3或G2.5供选择，配有DIN6499夹头卡盘可以是直柄切割机夹紧各种尺寸
我们正在专业生产HSK ER弹簧夹夹，我们可以想到样品处理，完善的售后服务和技术支持。期待您的合作！
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
4耗尽内部柄锥：≤0.002mm;与夹头的同轴度：≤0.005mm;
5动态平衡：G2.5 30000RPM;
6.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.镀镍涂层，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

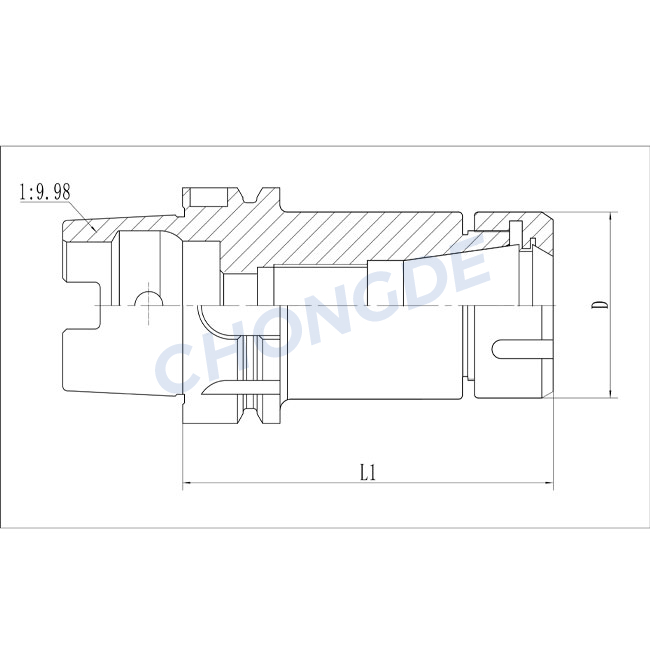

订单号。 | 型号。 | 柄 | 范围 | D | L1 | 夹子 | 扳手 |
CD010114.3211045 | HSK32A-ER11-45 | HSK32A | 1-7 | 19 | 45 | er11 | er11a. |
CD010114.3211060 | HSK32A-ER11-60 | 80 | |||||
CD010114.4016080 | HSK40A-ER16-80 | HSK40A | 1-10 | 28 | ER16 | er16a. | |
CD010114.4020080 | HSK40A-ER20-80 | 1-13 | 34 | ER20 | ER20A | ||
CD010114.4025080. | HSK40A-ER25-80 | 1-16 | 42 | ER25 | ER25UM | ||
CD010114.5016080. | HSK50A-ER16-80 | HSK50A | 1-10 | 28 | ER16 | er16a. | |
CD010114.5016100 | HSK50A-ER16-100 | 100 | |||||
CD010114.5020080 | HSK50A-ER20-80 | HSK50A | 1-13 | 34 | 80 | ER20 | ER20A |
CD010114.5020100 | HSK50A-ER20-100 | 100 | |||||
CD010114.5025080. | HSK50A-ER25-80 | HSK50A | 1-16 | 42 | 80 | ER25 | ER25UM |
CD010114.5025100 | HSK50A-ER25-100 | 100 | ER25 | ||||
CD010114.5032100 | HSK50A-ER32-100 | HSK50A | 1-20 | 50 | 100 | ER32 | er32um |
CD010114.6316080 | HSK63A-ER16-80 | HSK63A | 1 - 10 | 28 | 80 | ER16 | er16a. |
CD010114.6316100 | HSK63A-ER16-100 | 100 | |||||
CD010114.6316120 | HSK63A-ER16-120 | 120 | |||||
CD010114.6316160 | HSK63A-ER16-160 | 160 | |||||
CD010114.6320080 | HSK63A-ER20-80 | 1 - 13 | 34 | 80 | ER20 | ER20A | |
CD010114.6320100 | HSK63A-ER20-100 | 100 | |||||
CD010114.6320120 | HSK63A-ER20-120 | 120 | |||||
CD010114.6320160 | HSK63A-ER20-160 | 160 | |||||
CD010114.632508080 | HSK63A-ER25-80 | 1 - 16 | 42 | 80 | ER25 | ER25UM | |
CD010114.6325100 | HSK63A-ER25-100 | 100 | |||||
CD010114.6325125 | HSK63A-ER25-125 | 125 | |||||
CD010114.6325160 | HSK63A-ER25-160 | 160 | |||||
CD010114.6332080 | HSK63A-ER32-80 | 1 - 20 | 50 | 80 | ER32 | er32um | |
CD010114.6332100 | HSK63A-ER32-100 | 100 | |||||
CD010114.6332120 | HSK63A-ER32-120 | 120 | |||||
CD010114.6332160 | HSK63A-ER32-160 | 160 | |||||
CD010114.6340100 | HSK63A-ER40-100 | 3 - 26 | 63 | 100 | ER40 | er40um | |
CD010114.6340120 | HSK63A-ER40-120 | 120 | |||||
CD010114.6340160 | HSK63A-ER40-160 | 160 | |||||
CD010114.1016100 | HSK100A-ER16-100 | HSK100A | 1 - 10 | 28 | 100 | ER16 | er16a. |
CD010114.1016120 | HSK100A-ER16-120 | 120 | |||||
CD010114.1016160 | HSK100A-ER16-160 | 160 | |||||
CD010114.1020100 | HSK100A-ER20-100 | 1 - 13 | 34 | 100 | ER20 | ER20A | |
CD010114.1020120 | HSK100A-ER20-120 | 120 | |||||
CD010114.1020160 | HSK100A-ER20-160 | 160 | |||||
CD010114.1025100 | HSK100A-ER25-100 | 1 - 16 | 42 | 100 | ER25 | ER25UM | |
CD010114.1025120 | HSK100A-ER25-120 | 120 | |||||
CD010114.1025160 | HSK100A-ER25-160 | 160 | |||||
CD010114.1032100 | HSK100A-ER32-100 | 1-20 | 50 | 100 | ER32 | er32um | |
CD010114.1032120 | HSK100A-ER32-120 | 120 | |||||
CD010114.1032160 | HSK100A-ER32-160 | 160 | |||||
CD010114.1040100 | HSK100A-ER40-100 | 3 - 26 | 63 | 100 | ER40 | er40um | |
CD010114.1040120 | HSK100A-ER40-120 | 120 | |||||
CD010114.1040160 | HSK100A-ER40-160 | 160 |
