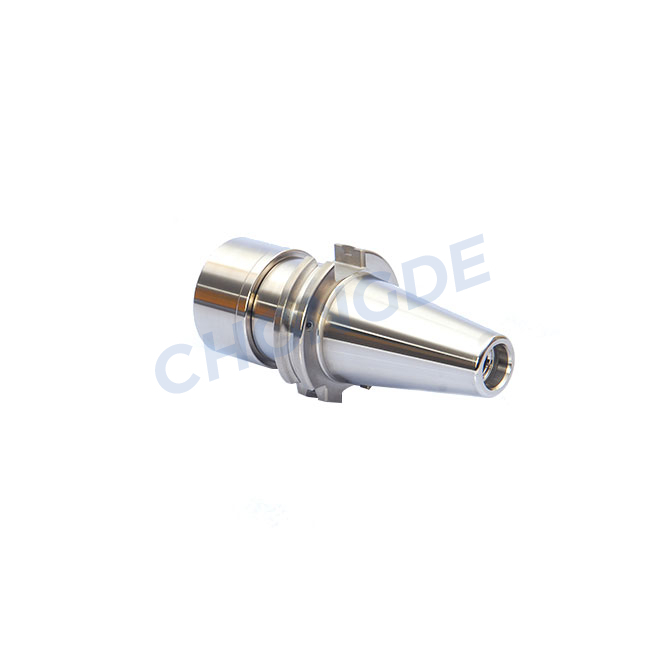

SK GER工具架系列具有较少的突出长度和比普通ER工具架更少于突出的接触面积，因此可以提供更高的径向切割力，大大增加夹紧动力。 SK GER Chuck在高速切割过程中有更稳定的特点，改善了使用寿命。 SK GER工具架更适合更高的速度和更高的精确切割。
DIN 69871型分为两种类型，即DIN 69871 A / AD型和DIN 69871 B型，前者是中心冷却剂，后者是法兰冷却剂，其他尺寸是相同的。
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
4耗尽内部柄锥：≤0.002mm;与夹头的同轴度：≤0.005mm;
5动态平衡：G2.5 25000000RPM;
6.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.镀镍涂层，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。
订单号。 | 型号。 | L1 | D1 | D2 | T | 夹子 | 扳手 | kgs. |
CD010108.3011100 | SK30-GER11-100 | 100 | 19.5 | 1-7 | M6×1P. | er11 | GH19 | 0.6 |
CD010108.3016100 | SK30-GER16-100 | 27.1 | 1-10 | m11x1p. | ER16 | GH27 | 0.7 | |
CD010108.3020100 | SK30-GER20-100 | 33 | 1-13 | m14x1p. | ER20 | GH33 | 0.75 | |
CD010108.3025100. | SK30-GER25-100 | 40 | 1-16 | m18x1.5p. | ER25 | GH40. | 0.8 | |
CD010108.3032100 | SK30-GER32-100 | 50 | 1-20 | m22x1.5p. | ER32 | GH50. | 0.9 | |
CD010108.4011100 | SK40-GER11-100 | 19.5 | 1-7 | M6×1P. | er11 | GH19 | 1.05 | |
CD010108.4011125 | SK40-GER11-125 | 125 | er11 | 1.15 | ||||
CD010108.4016070 | SK40-GER16-70. | 70 | 27.1 | 1-10 | m11x1p. | ER16 | GH27 | 1.3 |
CD010108.4016100 | SK40-GER16-100 | 100 | 1.4 | |||||
CD010108.4016125 | SK40-GER16-125. | 125 | 1.6 | |||||
CD010108.4016150 | SK40-GER16-150 | 150 | 1.65 | |||||
CD010108.4020070 | SK40-GER20-70. | 70 | 33 | 1-13 | m14x1p. | ER20 | GH33 | 1.4 |
CD010108.4020100 | SK40-GER20-100 | 100 | 1.5 | |||||
CD010108.4020125 | SK40-GER20-125. | 125 | 1.95 | |||||
CD010108.4020150. | SK40-GER20-150 | 150 | 2.2 | |||||
CD010108.4025070 | SK40-GER25-70. | 70 | 40 | 1-16 | m18x1.5p. | ER25 | GH40. | 1.6 |
CD010108.4025100 | SK40-GER25-100 | 100 | 1.85 | |||||
CD010108.4025150 | SK40-GER25-150 | 150 | 2.25 | |||||
CD010108.4032070 | SK40-GER32-70. | 70 | 50 | 1-20 | m22x1.5p. | ER32 | GH50. | 1.6 |
CD010108.4032100 | SK40-GER32-100 | 100 | 2 | |||||
CD010108.4032125 | SK40-GER32-125 | 125 | 2.15 | |||||
CD010108.4032150 | SK40-GER32-150 | 150 | 2.65 | |||||
CD010108.5016100 | SK50-GER16-100 | 100 | 27.1 | 1-10 | m11x1p. | ER16 | GH27 | 3.2 |
CD010108.5016125 | SK50-GER16-125 | 125 | 4.3 | |||||
CD010108.5016150 | SK50-GER16-150 | 150 | 4.5 | |||||
CD010108.5020100 | SK50-GER20-100 | 100 | 33 | 1-13 | m14x1p. | ER20 | GH33 | 3.4 |
CD010108.5020125 | SK50-GER20-125 | 125 | 3.6 | |||||
CD010108.5020150. | SK50-GER20-150 | 150 | 3.8 | |||||
CD010108.502507070 | SK50-GER25-70. | 70 | 40 | 1-16 | m18x1.5p. | ER25 | GH40. | 3.4 |
CD010108.5025100 | SK50-GER25-100 | 100 | 4.15 | |||||
CD010108.5025150 | SK50-GER25-150 | 150 | 4.5 | |||||
CD010108.5032080 | SK50-GER32-80 | 80 | 50 | 1-20 | m22x1.5p. | ER32 | GH50. | 3.6 |
CD010108.5032120 | SK50-GER32-120 | 120 | 4.6 | |||||
CD010108.5032160 | SK50-GER32-160 | 160 | 4.75 |
