BT ER弹簧夹紧夹头车床工具架，机械主轴和切割工具等配件。高精度BT柄刀具架，平衡G6.3或G2.5供选择，DIN6499夹头卡盘可以直线柄切割机夹紧各种尺寸。订购时，请指定表单：A，AD或（AD + B）。
我们专注于生产BT ER弹簧夹夹，我们可以想到样品加工，以及完善的售后服务和技术支持。期待您的合作！
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.锥形精度≤AT3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
6.超出内部柄锥：≤0.002mm;带夹头的同轴度：≤0.005mm;
7.动态余额可以做到：g6.3 12000rpm，g2.5 20000rpm;
8.适用于镗孔，铣削，钻孔，攻丝，研磨，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.外观镀镍，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

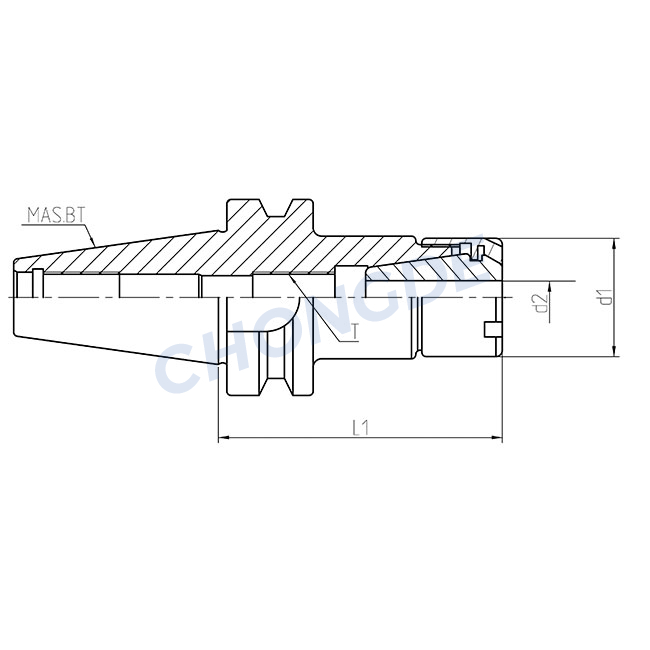

订单号。 | 型号。 | L | D1 | D2 | T | 夹子 | 扳手 | kgs. |
CD010116.5016070 | BT50-ER16-70 | 70 | 28 | 1-10 | m11x1p. | ER16 | er16a. | 4.05 |
CD010116.5016100 | BT50-ER16-100 | 100 | ER16 | er16a. | 4.2 | |||
CD010116.5016135 | BT50-ER16-135 | 135 | ER16 | er16a. | 4.4 | |||
CD010116.5016150 | BT50-ER16-150 | 150 | ER16 | er16a. | 4.45 | |||
CD010116.5016165 | BT50-ER16-165 | 165 | ER16 | er16a. | 4.5 | |||
CD010116.5016200 | BT50-ER16-200 | 200 | ER16 | er16a. | 4.8 | |||
CD010116.5020070 | BT50-ER20-70 | 70 | 34 | 1-13 | m14x1p. | ER20 | ER20A | 4.2 |
CD010116.5020100 | BT50-ER20-100 | 90 | ER20 | ER20A | 4.25 | |||
CD010116.5020135 | BT50-ER20-135 | 135 | ER20 | ER20A | 4.55 | |||
CD010116.5020150 | BT50-ER20-150 | 150 | ER20 | ER20A | 4.7 | |||
CD010116.5020165 | BT50-ER20-165 | 165 | ER20 | ER20A | 4.8 | |||
CD010116.5020200. | BT50-ER20-200 | 200 | ER20 | ER20A | 4.9 | |||
CD010116.5020250 | BT50-ER20-250 | 250 | ER20 | ER20A | 5.2 | |||
CD010116.5025070. | BT50-ER25-70 | 70 | 42 | 1-16 | m18x1.5p. | ER25 | ER25UM | 4.2 |
CD010116.5025100 | BT50-ER25-100 | 105 | ER25 | ER25UM | 4.4 | |||
CD010116.5025135 | BT50-ER25-135 | 135 | ER25 | ER25UM | 4.7 | |||
CD010116.5025150 | BT50-ER25-150 | 150 | ER25 | ER25UM | 4.8 | |||
CD010116.5025165 | BT50-ER25-165 | 165 | ER25 | ER25UM | 5 | |||
CD010116.5025200 | BT50-ER25-200 | 200 | ER25 | ER25UM | 5.2 | |||
CD010116.5025250 | BT50-ER25-250 | 250 | ER25 | ER25UM | 5.5 | |||
CD010116.5025300 | BT50-ER25-300 | 300 | ER25 | ER25UM | 5.7 | |||
CD010116.5025350 | BT50-ER25-350 | 350 | ER25 | ER25UM | 5.9 | |||
CD010116.5025400 | BT50-ER25-400. | 400 | ER25 | ER25UM | 6.1 | |||
CD010116.5025450 | BT50-ER25-450 | 450 | ER25 | ER25UM | 6.3 | |||
CD010117.503207070 | BT50-ER32-70. | 70 | 50 | 1-20 | m22x1.5p. | ER32 | er32um | 4.6 |
CD010117.5032100 | BT50-ER32-100 | 100 | ER32 | er32um | 4.8 | |||
CD010117.5032135 | BT50-ER32-135 | 135 | ER32 | er32um | 5 | |||
CD010117.5032150 | BT50-ER32-150 | 150 | ER32 | er32um | 5.3 | |||
CD010117.5032165 | BT50-ER32-165 | 165 | ER32 | er32um | 5.4 | |||
CD010117.5032200 | BT50-ER32-200 | 200 | ER32 | er32um | 5.5 | |||
CD010117.5032250 | BT50-ER32-250 | 250 | ER32 | er32um | 5.8 | |||
CD010117.5032300 | BT50-ER32-300 | 300 | ER32 | er32um | 6 | |||
CD010117.5032350 | BT50-ER32-350 | 350 | ER32 | er32um | 6.2 | |||
CD010117.5032400 | BT50-ER32-400 | 400 | ER32 | er32um | 6.4 | |||
CD010117.5032450 | BT50-ER32-450 | 450 | ER32 | er32um | 6.6 | |||
CD010117.5040080 | BT50-ER40-80 | 80 | 63 | 3-26 | m28x1.5p. | ER40 | er40um | 4.3 |
CD010117.5040100 | BT50-ER40-100 | 100 | ER40 | er40um | 4.4 | |||
CD010117.5040120 | BT50-ER40-120 | 120 | ER40 | er40um | 5.2 | |||
CD010117.5040135 | BT50-ER40-135 | 135 | ER40 | er40um | 5.5 | |||
CD010117.5040150 | BT50-ER40-150 | 150 | ER40 | er40um | 5.8 | |||
CD010117.5040200. | BT50-ER40-200 | 200 | ER40 | er40um | 6.7 | |||
CD010117.504050. | BT50-ER40-250 | 250 | ER40 | er40um | 7.5 | |||
CD010117.5040300 | BT50-ER40-300 | 300 | ER40 | er40um | 8.4 | |||
CD010117.5040350 | BT50-ER40-350 | 350 | ER40 | er40um | 9.5 | |||
CD010117.5040400. | BT50-ER40-400 | 400 | ER40 | er40um | 10.5 | |||
CD010117.5040450 | BT50-ER40-450 | 450 | ER40 | er40um | 11.5 | |||
CD010117.5050090 | BT50-ER50-90. | 90 | 78 | 6-34 | m28x1.5p. | ER50 | er50um. | 4.6 |
CD010117.5050120 | BT50-ER50-120 | 120 | ER50 | er50um. | 5.5 | |||
CD010117.5050165 | BT50-ER50-165 | 165 | ER50 | er50um. | 6.1 | |||
CD010117.5050300 | BT50-ER50-300 | 165 | ER50 | er50um | 10 | |||
CD010117.5050350 | BT50-ER50-350 | 165 | ER50 | er50um | 11 | |||
CD010117.5050400. | BT50-ER50-400 | 165 | ER50 | er50um | 12 |
