BT ER弹簧夹夹用M型螺母卡盘，只有螺母不同于正常的BT ER夹头夹头。 M型螺母的特点是小直径，可以防止操作期间干扰。 BT ER弹簧夹夹夹铣刀，机械主轴和切削刀具等配件。高精度BT柄刀具架，平衡G6.3或G2.5供选择，DIN6499夹头卡盘可以直线柄切割机夹紧各种尺寸。由于线程是不同的，M型刀具支架不能将螺母更换为其他类型的螺母，如类型，UM类型和GER型螺母。
订购时，请指定表单：A，AD或（AD + B）。
我们专注于生产BT ER弹簧夹夹，我们可以想到样品加工，以及完善的售后服务和技术支持。期待您的合作！
特征：
1.材质：20crmnti或JIS-SCM415
2.硬度：56-60HRC;
3.渗碳深度：> 0.8;
4.粗糙度：RA <0.4U;
5.使用M型螺母防止干扰。
6.锥形精度≤T3和一部分标准尺寸由德国制造的Diebold标准检查工具测试;
7.超出内部柄锥：≤0.002mm;与夹头的同轴度：≤0.005mm;
8.动态余额可以做：G6.3 12000RPM，G2.5 20000〜30000RPM;
9.适用于镗孔，铣削，钻孔，攻丝，磨削，雕刻加工。
我们的优势
1.好的刚性
2.零件加工和表面处理尺寸的高精度稳定性
3.使用寿命改善切割工具
4.在重切割过程中，振动引起的锥形柄磨损
5. ATC以高精度重复操作
6.外观镀镍，产品是防锈，防腐和耐用性更好。
4.清洁外观和精度稳定
5. -196℃长的低温处理和超长时间热老化加工，减少残余应力并增加硬度和韧性。

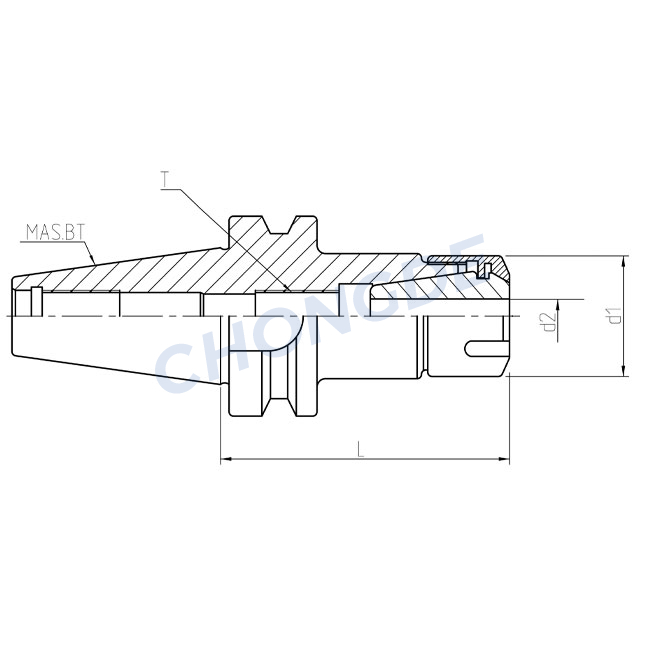

订单号 | 型号型号 | L1 | D1 | D2 | T | 夹子 | 扳手 | kgs. |
CD010118.3011070 | BT30-ER11M-70 | 70 | 16 | 1-7 | m6x1p. | er11 | er11m. | 0.5 |
CD010118.3011100 | BT30-ER11M-100 | 100 | 16 | er11 | er11m. | 0.6 | ||
CD010118.3011120 | BT30-ER11M-120 | 120 | 16 | er11 | er11m. | 0.7 | ||
CD010118.3016070 | BT30-ER16M-70 | 70 | 22 | 1-10 | m11x1p. | ER16 | er16m. | 0.55 |
CD010118.3016100 | BT30-ER16M-100 | 100 | 22 | ER16 | er16m. | 0.65 | ||
CD010118.3016120 | BT30-ER16M-120 | 120 | 22 | ER16 | er16m. | 0.75 | ||
CD010118.3020100 | BT30-ER20M-100 | 100 | 28 | 1-13 | m14x1p. | ER20 | er20m. | 0.7 |
CD010118.3020120 | BT30-ER20M-120 | 120 | 28 | ER20 | er20m. | 0.8 | ||
CD010118.3020150 | BT30-ER20M-150 | 150 | 28 | ER20 | er20m. | 1 | ||
CD010118.4011070 | BT40-ER11M-70 | 70 | 16 | 1-7 | m6x1p. | er11 | er11m. | 1.1 |
CD010118.4011100 | BT40-ER11M-100 | 100 | 16 | er11 | er11m. | 1.2 | ||
CD010118.4011125 | BT40-ER11M-125 | 125 | 16 | er11 | er11m. | 1.4 | ||
CD010118.4011150 | BT40-ER11M-150 | 150 | 16 | er11 | er11m. | 1.5 | ||
CD010118.4016070. | BT40-ER16M-70 | 70 | 22 | 1-10 | m11x1p. | ER16 | er16m. | 1.2 |
CD010118.4016100 | BT40-ER16M-100 | 100 | 22 | ER16 | er16m. | 1.3 | ||
CD010118.4016125 | BT40-ER16M-125 | 125 | 22 | ER16 | er16m. | 1.5 | ||
CD010118.4016150 | BT40-ER16M-150 | 150 | 22 | ER16 | er16m. | 1.6 | ||
CD010118.4020070 | BT40-ER20M-70 | 70 | 28 | 1-13 | m14x1p. | ER20 | er20m. | 1.2 |
CD010118.4020100 | BT40-ER20M-100 | 100 | 28 | ER20 | er20m. | 1.55 | ||
CD010118.4020125 | BT40-ER20M-125 | 125 | 28 | ER20 | er20m. | 1.7 | ||
CD010118.4020150 | BT40-ER20M-150 | 150 | 28 | ER20 | er20m. | 1.8 | ||
CD010118.5011070 | BT50-ER11M-70 | 70 | 16 | 1-7 | m6x1p. | er11 | er11m. | 3.8 |
CD010118.5011090 | BT50-ER11M-90 | 90 | 16 | er11 | er11m. | 3.9 | ||
CD010118.5011105 | BT50-ER11M-105 | 105 | 16 | er11 | er11m. | 4 | ||
CD010118.5011135 | BT50-ER11M-135 | 135 | 16 | er11 | er11m. | 4.1 | ||
CD010118.5011165 | BT50-ER11M-165 | 165 | 16 | er11 | er11m. | 4.2 | ||
CD010118.5016070 | BT50-ER16M-70 | 70 | 22 | 1-10 | m11x1p. | ER16 | er16m. | 3.9 |
CD010118.5016090 | BT50-ER16M-90 | 90 | 22 | ER16 | er16m. | 4 | ||
CD010118.5016105 | BT50-ER16M-105 | 105 | 22 | ER16 | er16m. | 4.1 | ||
CD010118.5016135 | BT50-ER16M-135 | 135 | 22 | ER16 | er16m. | 4.2 | ||
CD010118.5016165 | BT50-ER16M-165 | 165 | 22 | ER16 | er16m. | 4.3 | ||
CD010118.5020090 | BT50-ER20M-90 | 90 | 28 | 1-13 | m14x1p. | ER20 | er20m. | 4.1 |
CD010118.50201055 | BT50-ER20M-105 | 105 | 28 | ER20 | er20m. | 4.2 | ||
CD010118.5020135 | BT50-ER20M-135 | 135 | 28 | ER20 | er20m. | 4.4 | ||
CD010118.5020165 | BT50-ER20M-165 | 165 | 28 | ER20 | er20m. | 4.6 |
